Product overview

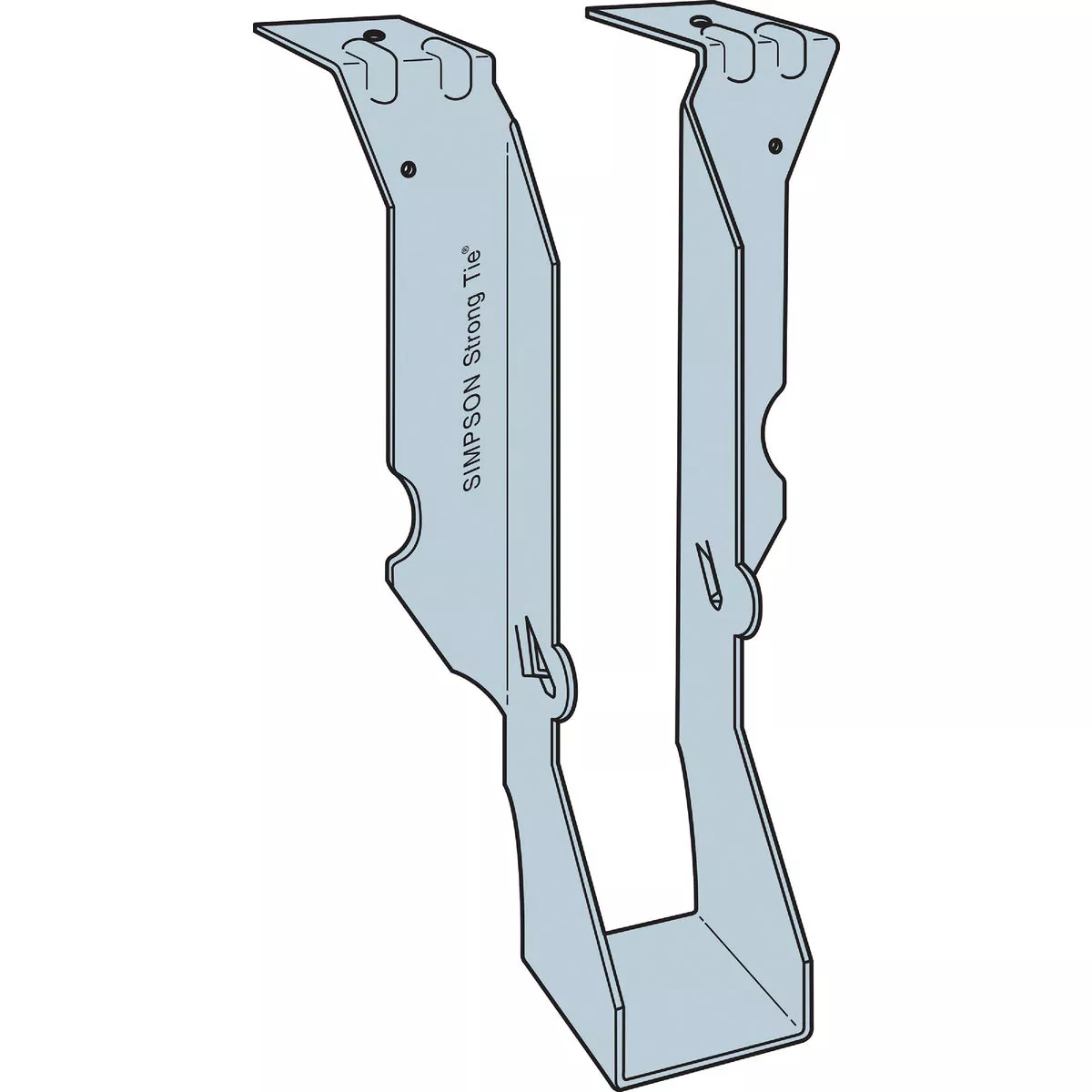

The JB hanger is cost effective and features a min/max joist nailing option. Min nailing featuring positive angle nailing targets for moderate load conditions whereas the max nailing generates capacities for higher loads. The unique 2 level embossment provides added stiffness to the top flange. The joist beam hanger cannot be modified. 18-gauge galvanized steel.
- Min/max joist nailing option
- Added stiffness
- 2 In. x 8 In.
- Galvanized
Product manuals and information
Specifications
Material | Steel |
Type | Top Flange |
Finish | Galvanized |
Size | 1-9/16\ W x 5-3/8\ H x 1-1/2\ Base |
Gauge | 18 |
Joist Size | 2 In. x 8 In. |
Width (In.) | 1.5625 |
Height (In.) | 5.375 |
Base (In.) | 1.5 |
Brand | Simpson Strong-Tie |
UPC | 00044315655401 |
