Swing N Slide Corp
|
Kodiak Play Kit

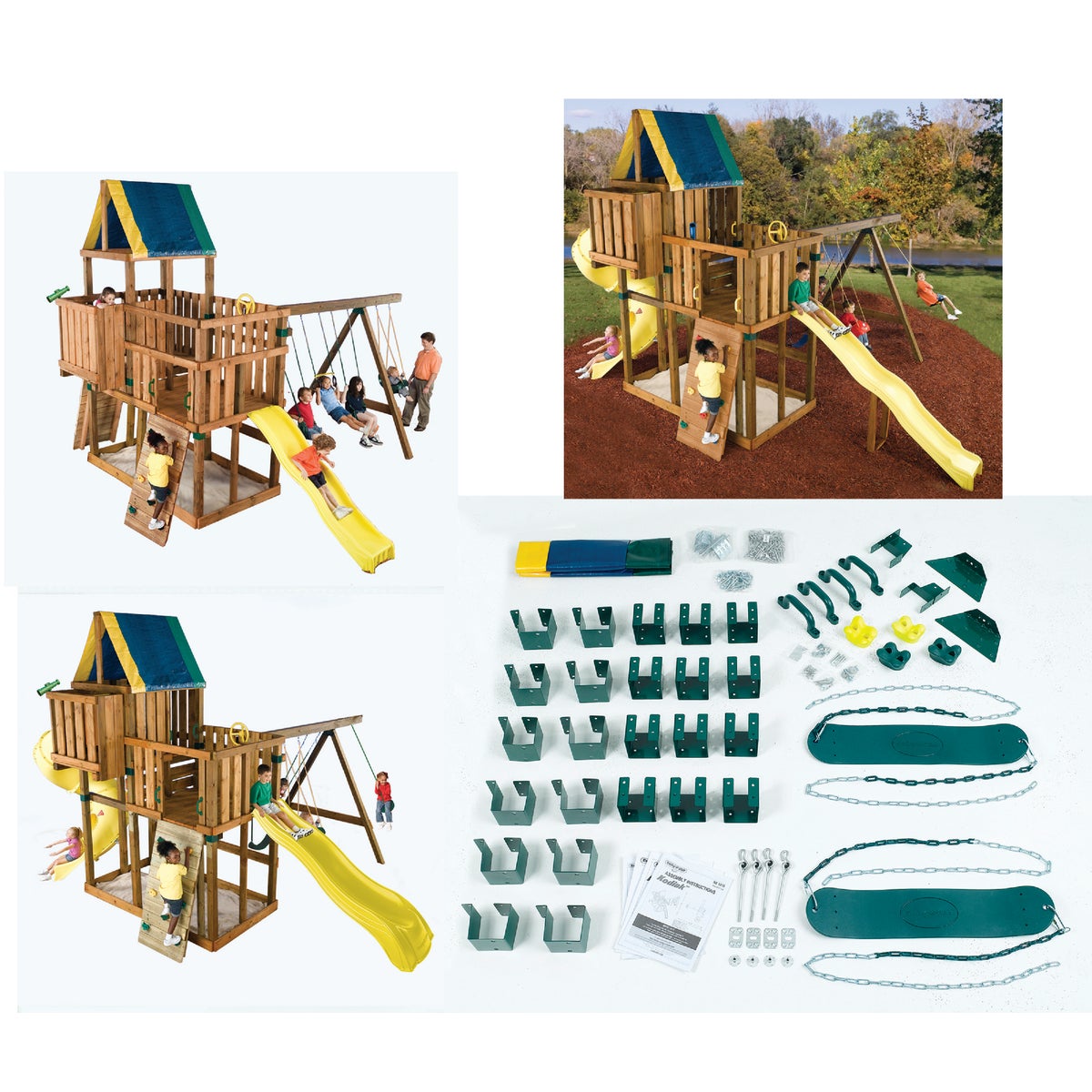

Kodiak ready-to-build custom play set. Think big. Our playful Kodiak double deck play structure offers 2 levels of fun with multiple play areas, including a 5´ rock wall option. Choose from 3 customizable design options that offer sliding, swinging, climbing, and imagination activities. The Kodiak features the award winning Rapic-Loc bracket system which allows you to build this action-packed play set quickly and easily and allows you to feel confident that this sturdy design will be enjoyed for years to come. ASTM certified.
Kit includes:
2 swing seats
1 multicolored tarp
2 pairs of safety handles
2 pairs of swing hangers
1 set of 4 colorful climbing rocks
Rapid-Loc bracket system
Self-drilling lag screws
Torx head 6" drive bit
Fully illustrated plans and DVD
Kodiak 1 Open Deck: Set dimensions 41´ sq. ft. 5´, 7´ minimum zone 34´ x 33-1/2´
Open Deck: Set dimensions: 41´ sq. ft. 4´, 5´ Minimum Zone Use: 32´ x 33-1/2"
Kodiak 2 Clubhouse: Set dimensions: 32´ sq. ft. 4´, 5´ Minimum Zone Use: 32´ x 30´
Estimated Building Time: 12 to 16 Hours
Lumber Requirements - Kodiak
| Bill of Materials Kodiak 1 - Open Deck | Bill of Materials Kodiak 2 - Open Deck | Bill of Materials Kodiak - Club House |
|---|
| Qty. | Description | Qty. | Description | Qty. | Description |
|---|
| 8 | 2" x 4" x 8´ | 3 | 2" x 4" x 8´ | 16 | 2" x 4" x 8´ |
|---|
| 6 | 2" x 4" x 10´ | 11 | 2" x 4" x 10´ | 1 | 2" x 4" x 10´ |
|---|
| 12 | 5/4" x 6" x 10´ | 7 | 5/4" x 6" x 10´ | 17 | 5/4" x 6" x 10´ |
|---|
| 10 | 5/4" x 6" x 12´ | 15 | 5/4" x 6" x 12´ | 14 | 5/4" x 6" x 12´ |
|---|
| 9 | 4" x 4" x 8´ | 8 | 4" x 4" x 8´ | 6 | 4" x 4" x 8´ |
|---|
| 5 | 4" x 4" x 10´ | 5 | 4" x 4" x 10´ | 4 | 4" x 4" x 10´ |
|---|
| 1 | 4" x 6" x 12´ or | 1 | 2" x 6" x 12´ or | 1 | 4" x 4" x 12´ |
|---|
| 2 | 2" x 6" x 12´ | 2 | 2" x 6" x 12´ | 1 | 4" x 6" x 12´ or |
|---|
| ACQ Comptatible | ACQ Comptatible | 2 | 2" x 6" x 12´ |
|---|
| 1 lb | 8 x 1-1/4" screws | 1 lb | 8 x 1-1/4" screws | ACQ Comptatible |
|---|
| 1 lb | 8 x 2" screws | 1 lb | 8 x 2" screws | 1 lb | 8 x 1-1/4" screws |
|---|
| 4 lb | 8 x 2-1/2" screws | 5 lb | 8 x 2-1/2" screws | 1 lb | 8 x 2" screws |
|---|
| Skyhawk Swing (sold separately) | Rock Wall (1 set of 4 included) | 5 lb | 8 x 2-1/2" screws |
|---|
| 1 | 2" x 4" x 4´ | 1 | 2" x 4" x 8´ | Rock Wall (1 set of 4 included) |
|---|
| Rock Wall (1 set of 4 included) | 1 | 2" x 4" x 10´ | 2 | 2" x 4" x 8´ |
|---|
| 2 | 2" x 4" x 8´ | 3 | 5/4" x 6" x 10´ | 2 | 5/4" x 6" x 12´ |
|---|
| 1 | 2" x 4" x 10´ | Wave (sold separately) | Super SpeedWave (sold separately) |
|---|
| 3 | 5/4" x 6" x 10´ | 1 | 2" x 4" x 2´ | 1 | 2" x 4" x 2´ |
|---|
| Giant Cool Wave (sold separately) | Discovery Mountain (sold separately) | Discovery Mountain (sold separately) |
|---|
| 1 | 2" x 4" x 12´ | 3 | 2" x 4" x 8´ | 1 | 2" x 4" x 8´ |
|---|
| Turbo Tube (sold separately) | Optional Ladder | Optional Ladder |
|---|
| 1 | 2" x 4" x 8´ | 1 | 2" x 4" x 8´ | 2 | 2" x 4" x 8´ |
|---|
| Optional Ladder | 2 | 2" x 4" x 10´ | 2 | 2" x 4" x 10´ |
|---|
| 2 | 2" x 4" x 8´ |
|---|
| 2 | 2" x 4" x 10´ |
|---|
|
|
|
|
|
|
