National Mfg Co
|

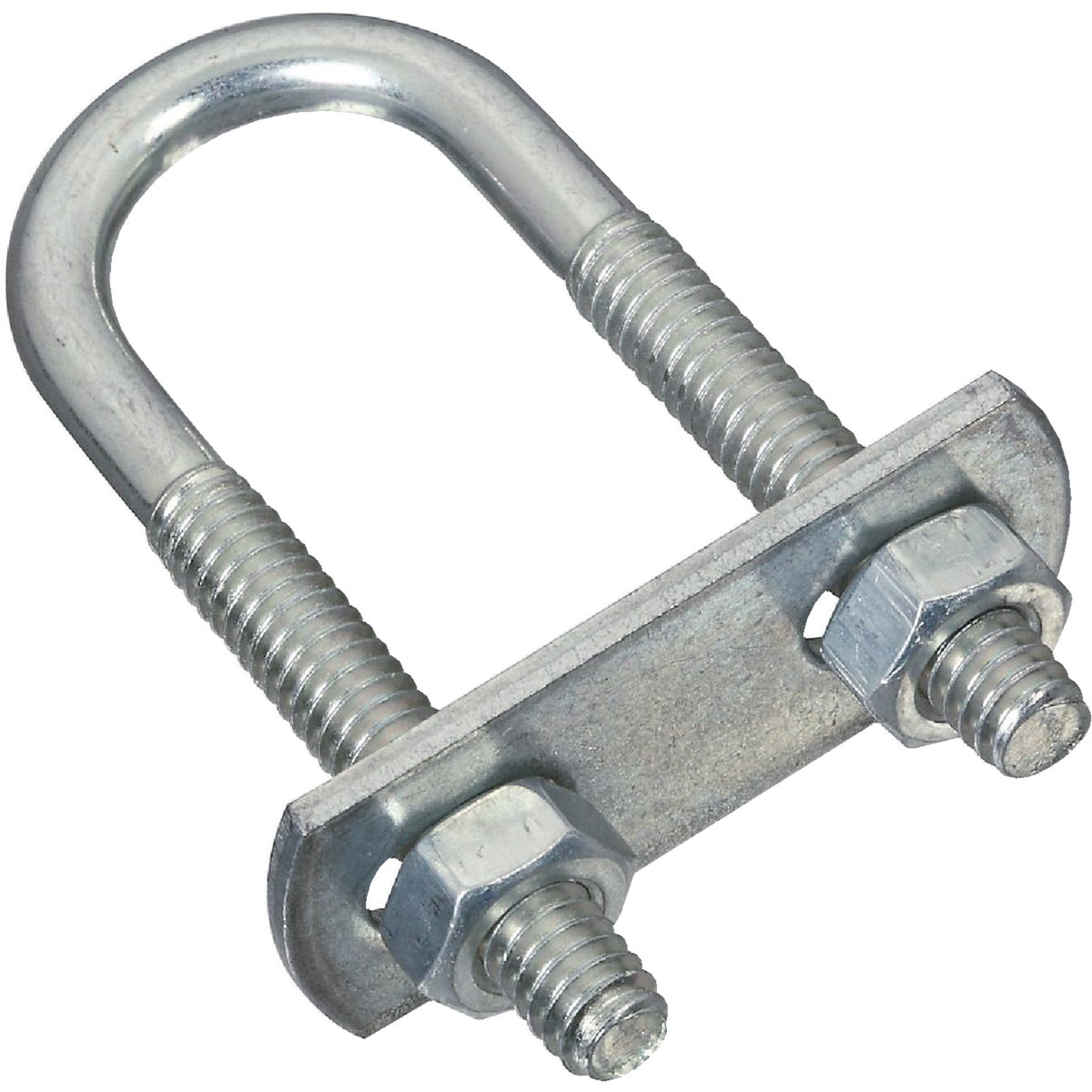

U Bolt
National catalog model No. 2190 series. Designed for hanging or fastening products to pipe, wood, etc. Bolts are suitable for automotive, plumbing, and other home and industrial applications. Made of steel. Plate and hex nuts included. Boxed loose.
| Model No. | Dia. Thread | Size Width Between Legs | Overall Lgth. | Thread Size | Thread Lgth. | Pipe Size* |
|---|
| 112 | 1/4" | x 3/4" | x 2-1/2" | 1/4-20 | 1-1/2" | 3/8" |
|---|
| 132 | 1/4" | x 1-1/8" | x 2-1/4 | 1/4-20 | 1" | 1/2" 3/4" |
|---|
| 136 | 1/4" | x 1-1/8" | x 3-1/2" | 1/4-20 | 1-3/4" | 1/2" 3/4" |
|---|
| 146 | 1/4" | x 1-3/8" | x 4" | 1/4-20 | 2-3/8" | 1" |
|---|
| 512 | 5/16" | x 1-3/8" | x 2-1/2" | 5/16-18 | 1-1/8" | 1" |
|---|
| 516 | 5/16" | x 1-3/8" | x 3-3/4" | 5/16-18 | 2-1/4" | 1" |
|---|
| 522 | 5/16" | x 1-3/4" | x 3" | 5/16-18 | 1-3/8" | 1-1/4" |
|---|
| 526 | 5/16" | x 1-3/4" | x 4-1/4" | 5/16-18 | 2-1/4" | 1-1/4" |
|---|
| 532 | 5/16" | x 2" | x 3-1/4" | 5/16-18 | 1-1/2" | 1-1/2" |
|---|
| 536 | 5/16" | x 2" | x 4-1/2" | 5/16-18 | 2-1/2" | 1-1/2" |
|---|
| 542 | 5/16" | x 2-1/2" | x 3-1/2" | 5/16-18 | 1-3/4" | 2" |
|---|
| 546 | 5/16" | x 2-1/2" | x 5" | 5/16-18 | 2-1/4" | 2" |
|---|
| 632 | 3/8" | 1.95" | 3.5" | 3/8-16 | 1.75" | 2" |
|---|
| 642 | 3/8" | 2.45" | 4" | 3/8-16 | 2" | 2.5" |
|---|
| 652 | 3/8" | 2.95" | 4.5" | 3/8-16 | 2" | 3" |
|---|
| 662 | 3/8" | x 3-1/2" | x 5-1/4" | 3/8-16 | 2-1/2" | 3" |
|---|
|
|
|
|
|
|
