FRNR Cartridge Fuse
Heavy-duty time delay FRNR dual element cartridge fuse for motor protection. Helps protect motors from burnout caused by overloads or single phasing. Time delay feature allows the initial startup surge for typical motors to pass, but opens proir to burnout when longer dangerous overloads are present. UL listed Class R (200,000 AIR). 1/10A to 60A have ferrule ends, 70A to 200A have knife-blade ends. 250V.No. BP-FRN-R-15: 15A, 2" L. x 9/16" diameter, 2 per card
No. BP-FRN-R-20: 20A, 2" L. x 9/16" diameter, 2 per card
No. BP-FRN-R-30: 30A, 2" L. x 9/16" diameter, 2 per card
No. BP-FRN-R-40: 40A, 3" L. x 13/16" diameter, 2 per card
No. BP-FRN-R-50: 50A, 3" L. x 13/16" diameter, 2 per card
No. BP-FRN-R-60: 60A, 3" L. x 13/16" diameter, 2 per card
No. FRNR10: 10A, 2" L. x 9/16" diameter, Bussman, individually bagged
No. FRN-R-15: 15A, 2" L. x 9/16" diameter, individual fuses
No. FRN-R-20: 20A, 2" L. x 9/16" diameter, individual fuses
No. FRN-R-25: 25A, 2" L. x 9/16" diameter, Do it Best, individual fuses
No. FRN-R-30: 30A, 2" L. x 9/16" diameter, Do it Best, individual fuses
No. FRN-R-35: 35A, 3" L. x 13/16" diameter, Do it Best, individual fuses

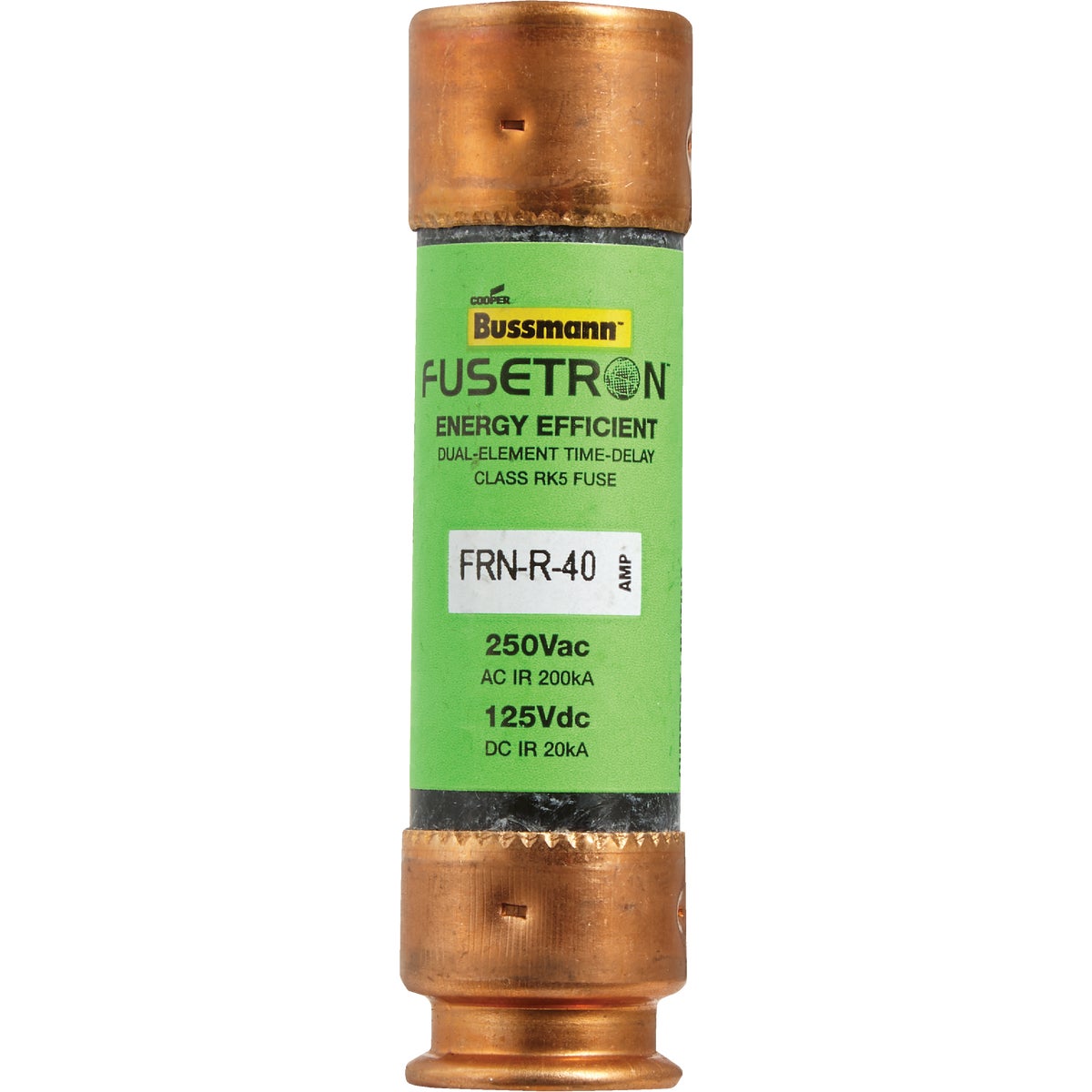

No. FRN-R-40: 40A, 3" L. x 13/16" diameter, Do it Best, individual fuses
No. FRN-R-45: 45A, 3" L. x 13/16" diameter, Do it Best, individual fuses
No. FRN-R-50: 50A, 3" L. x 13/16" diameter, Do it Best, individual fuses
No. FRN-R-60: 60A, 3" L. x 13/16" diameter, Do it Best, individual fuses
No. FRN-R-100: 100A, 5-7/8" L. x 1-1/16" diameter, Do it Best, individual fuses
No. FRN-R-200: 200A, 7-1/8" L. x 1-9/16" diameter, individual fuses |
