United Steel Product
|

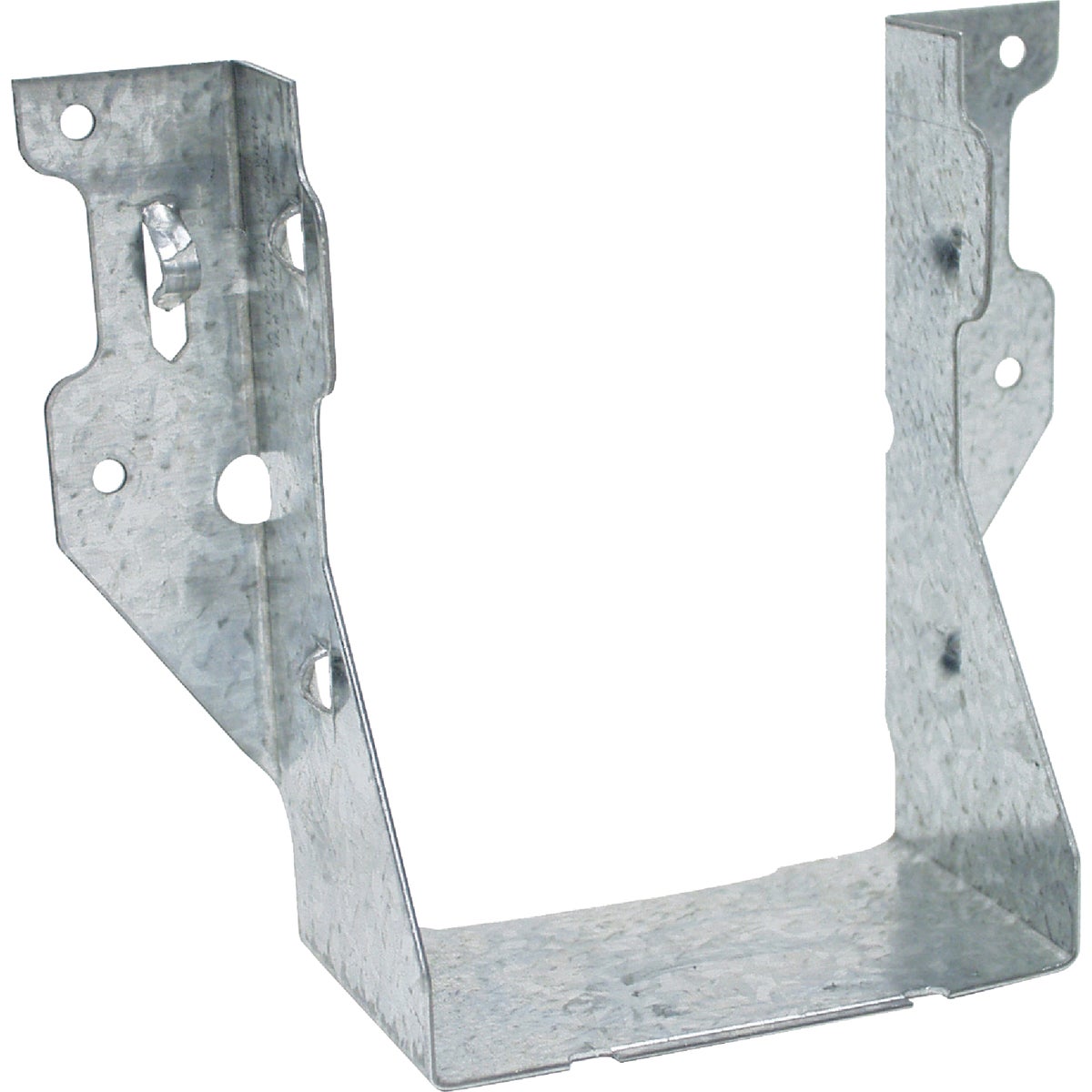

Slant Nail Joist Hanger
Offers double shear nailing. Patented dimple allows for 30 to 45 nailing through the joist into the header, resulting in higher loads and less nailing. Slant nailing also eliminates the need for shorter joist nails in 2X applications. 18-gauge. Finish: 90 galvanizing. TZ indicates triple zinc. GC indicates gold coat.
| Joist Size | Mfg. No. Dimensions |
|---|
| W | H | D | A |
|---|
| 2 x 4 | JUS24 JUS24TZ | 1-9/16 | 3-1/8 | 1-3/4 | 1 |
|---|
| 2 x 6 8 | JUS26 JUS26TZ JUS26-GC | 1-9/16 | 4-13/16 | 1-3/4 | 1 |
|---|
| 2 x 8 10 | JUS28 JUS28TZ | 1-9/16 | 6-5/8 | 1-3/4 | 1 |
|---|
| 2 x 10 12 | JUS210 JUS210TZ JUS210-GC | 1-9/16 | 7-3/4 | 1-3/4 | 1 |
|---|
| (2) 2 x 6 8 | JUS26-2 JUS26-2TZ JUS26-2GC | 3-1/8 | 5-1/4 | 2 | 1 |
|---|
| (2) 2 x 8 10 | JUS28-2 JUS28-2TZ | 3-1/8 | 7-1/8 | 2 | 1 |
|---|
| (2) 2 x 10 12 14 | JUS210-2 JUS210-2TZ JUS210-2GC | 3-1/8 | 9-1/8 | 2 | 1 |
|---|
| 4 x 4 | JUS44-TZ | 3-5/8 | 3-1/4 | 2 | 1 |
|---|
|
|
|
|
|
|
