Square D Co
|
Main Lug Load Center

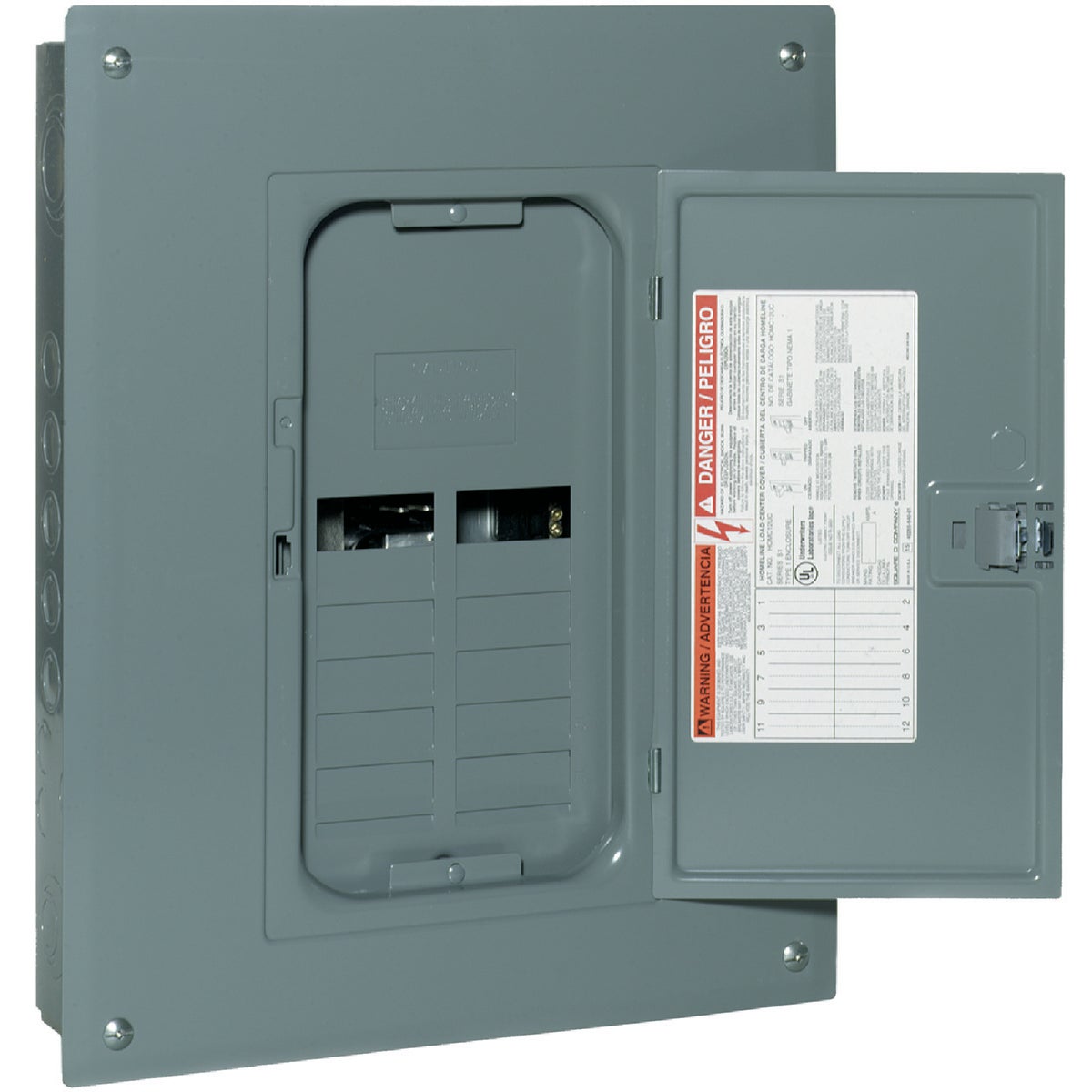

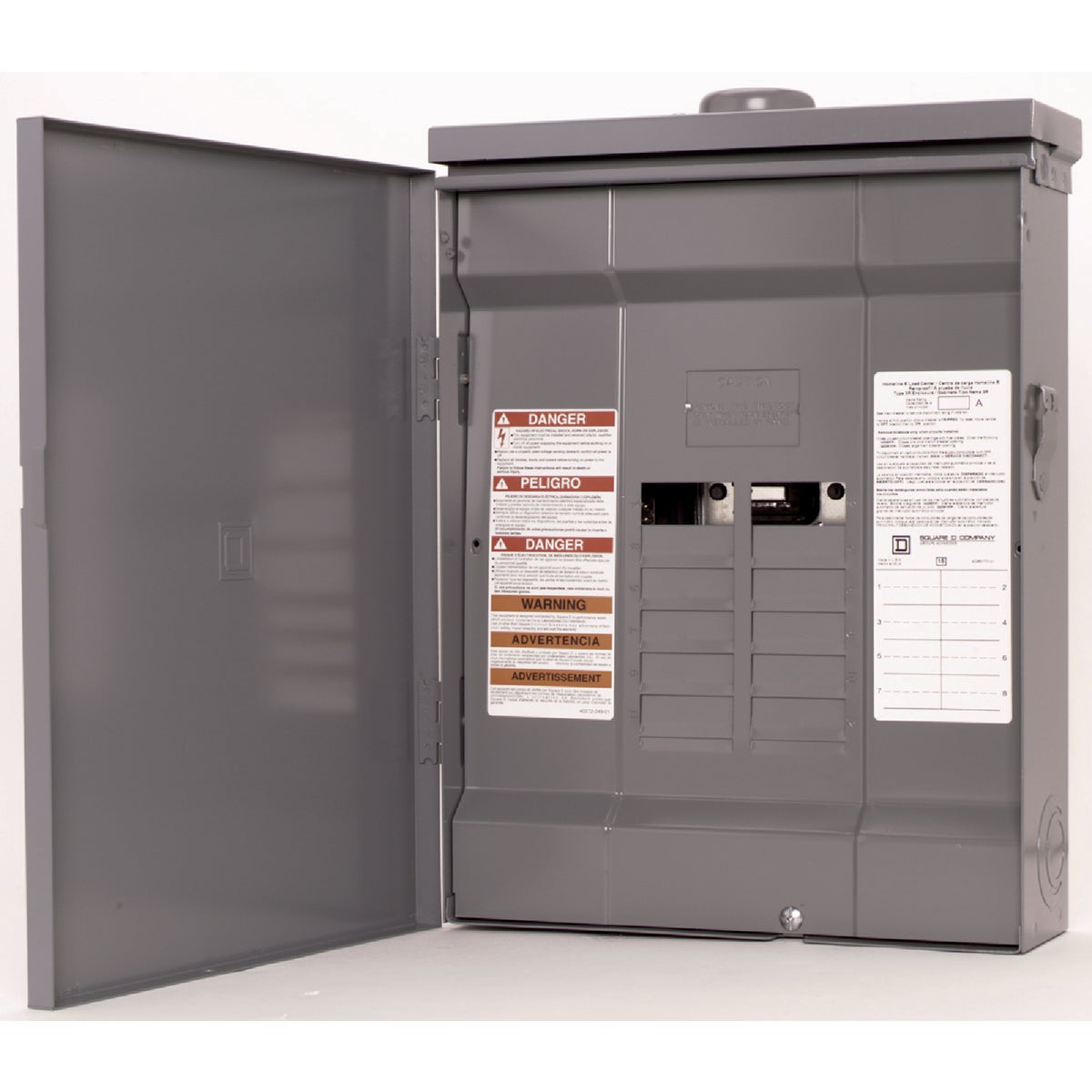

Homeline, main lugs only. Can be used when spaces for more circuits are needed, as a secondary or add on load center connected to the main disconnect load center. Single-phase, 3-wire. Cover included, ground bar kits must be ordered separately. Accepts only Homeline circuit breakers. 120V/240V, UL listed.
| No. | Amp Capacity | Mount | Spaces | Maximum Poles | Type | Circuit BreakerType | Bar Kit |
|---|
| HOM24L70FCP | 70A | Flush | 2 | 4 | Indoor | HOM/HOMT | PK3GTA-1 |
|---|
| HOM24L70SCP | 70A | Surface | 2 | 4 | Indoor | HOM/HOMT | PK3GTA-1 |
|---|
| HOM24L70RBCP | 70A | RB | 2 | 4 | Raintight | HOM/HOMT | PK3GTA-1 |
|---|
| HOM612L100FCP | 100A | Flush | 6 | 12 | Indoor | HOM/HOMT | PK7GTA |
|---|
| HOM612L100SCP | 100A | Surface | 6 | 12 | Indoor | HOM/HOMT | PK7GTA |
|---|
| HOM612L100RBCP | 100A | RB | 6 | 12 | Raintight | HOM/HOMT | PK7GTA |
|---|
| HOM816L125C | 125A | Combination | 8 | 16 | Indoor | HOM/HOMT | PK12GTA |
|---|
| *HOM816L125RB | 125A | RB | 8 | 16 | Raintight | HOM/HOMT | PK12GTA |
|---|
| HOM12L125C | 125A | Combination | 12 | 12 | Indoor | HOM | PK9GTA |
|---|
| **HOM12L125RB | 125A | RB | 12 | 12 | Raintight | HOM | PK9GTA |
|---|
| ***HOM1224L125TC | 125A | Combination | 12 | 24 | Indoor | HOM/HOMT | INSTALLED |
|---|
| **HOM20L125RB | 125A | RB | 20 | 20 | Raintight | HOM | PK15GTA |
|---|
| ****HOM30L200C | 200A | Combination | 30 | 30 | Indoor | HOM | PK18GTA |
|---|
|
|
|
|
|
|
