Square D Co
|

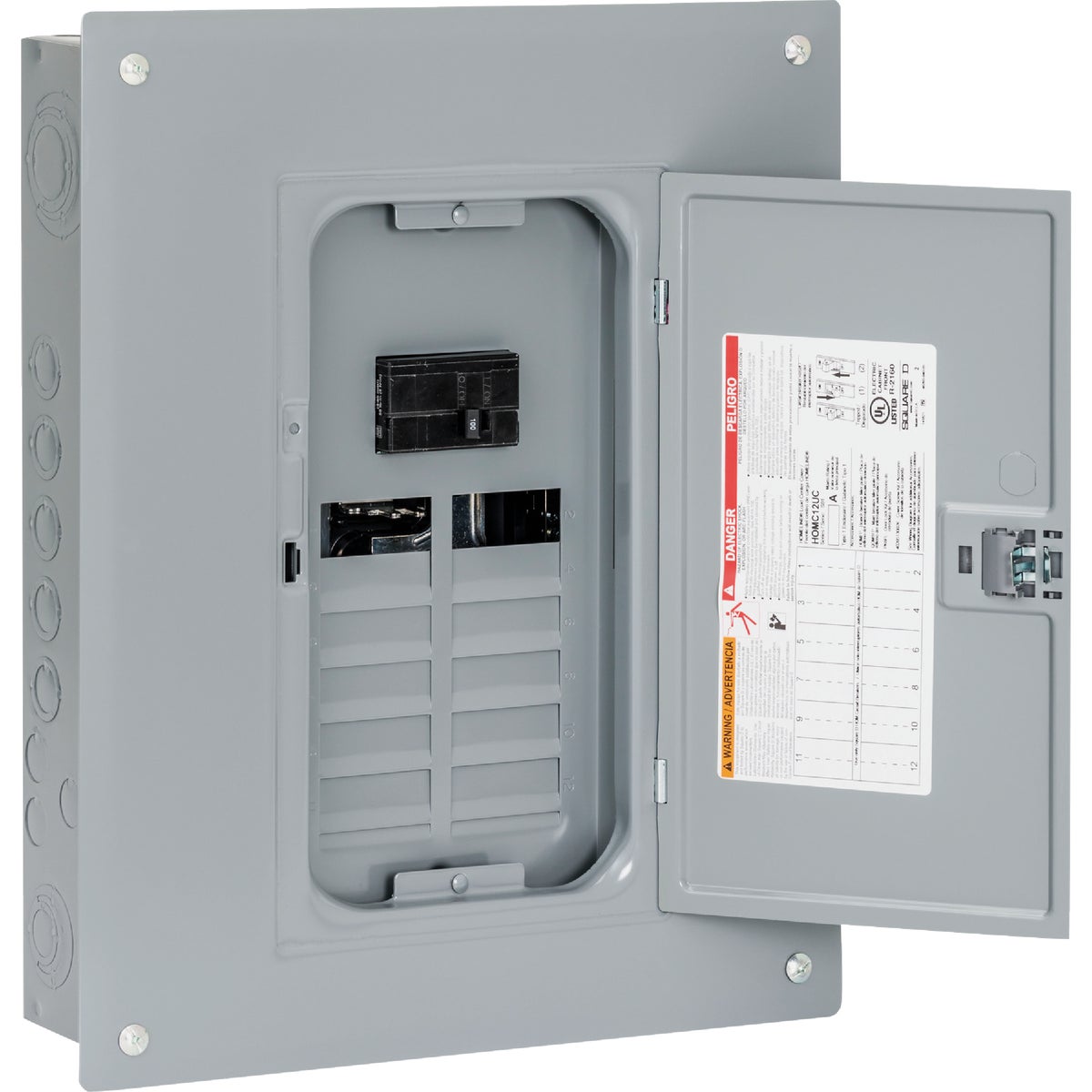

Main Breaker Load Center

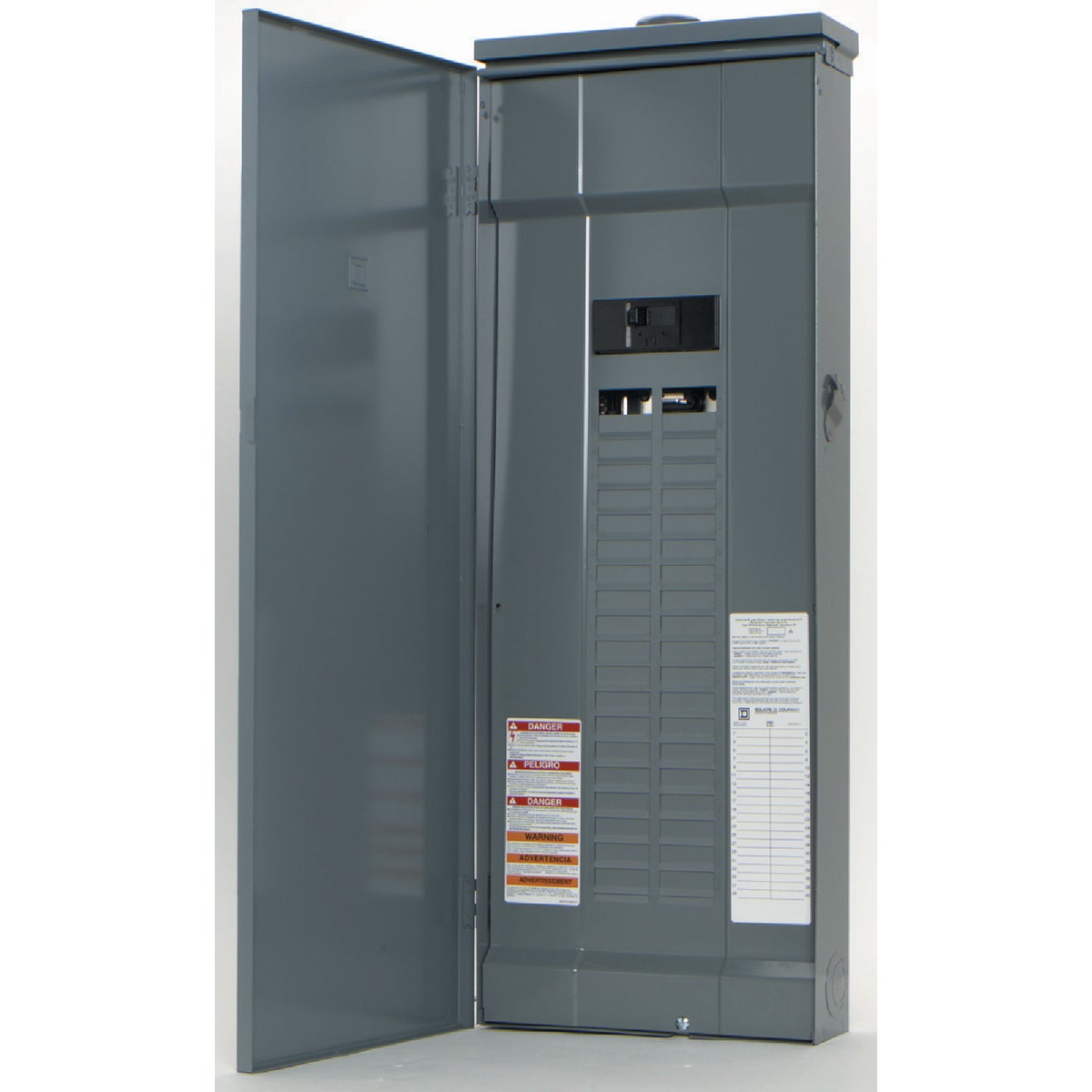

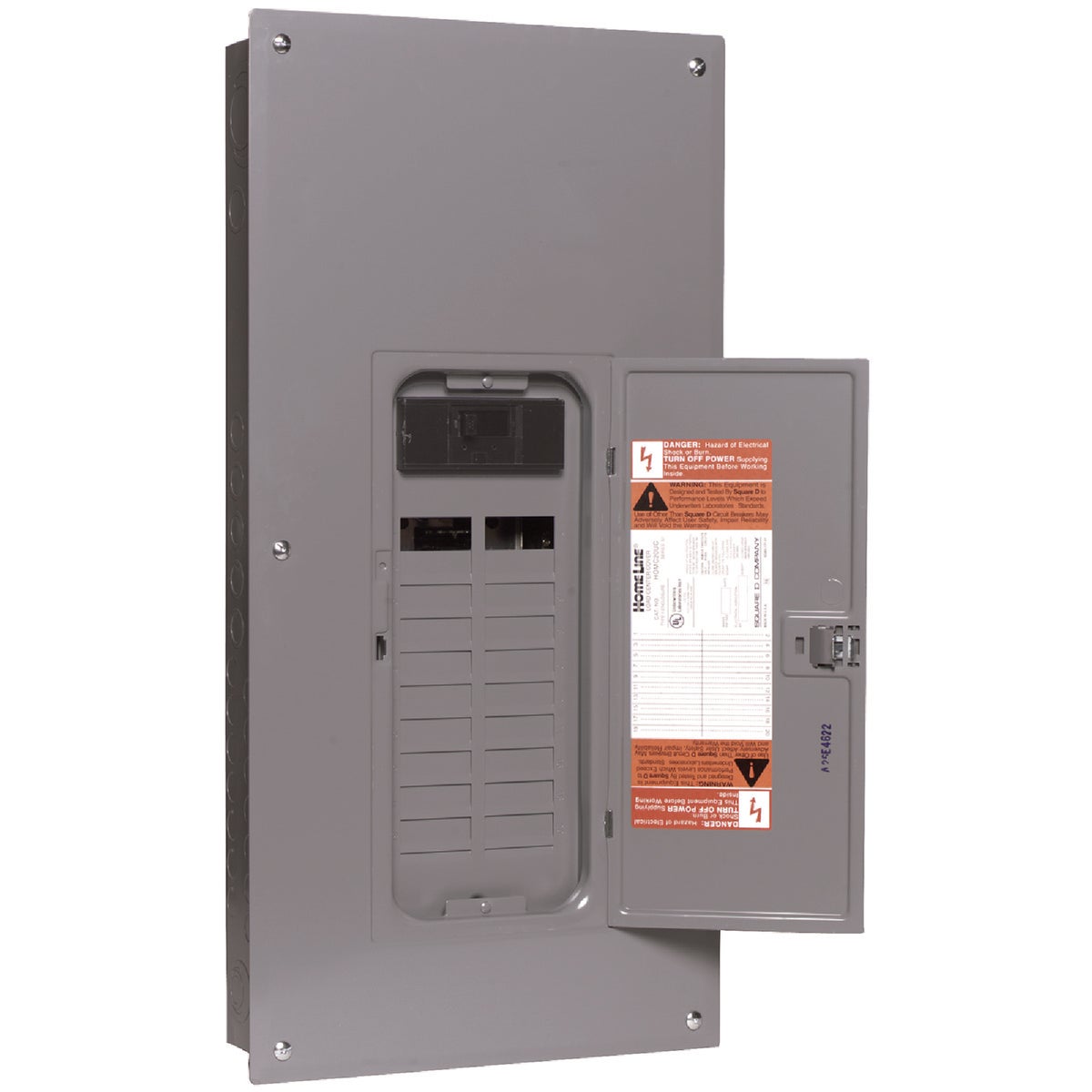

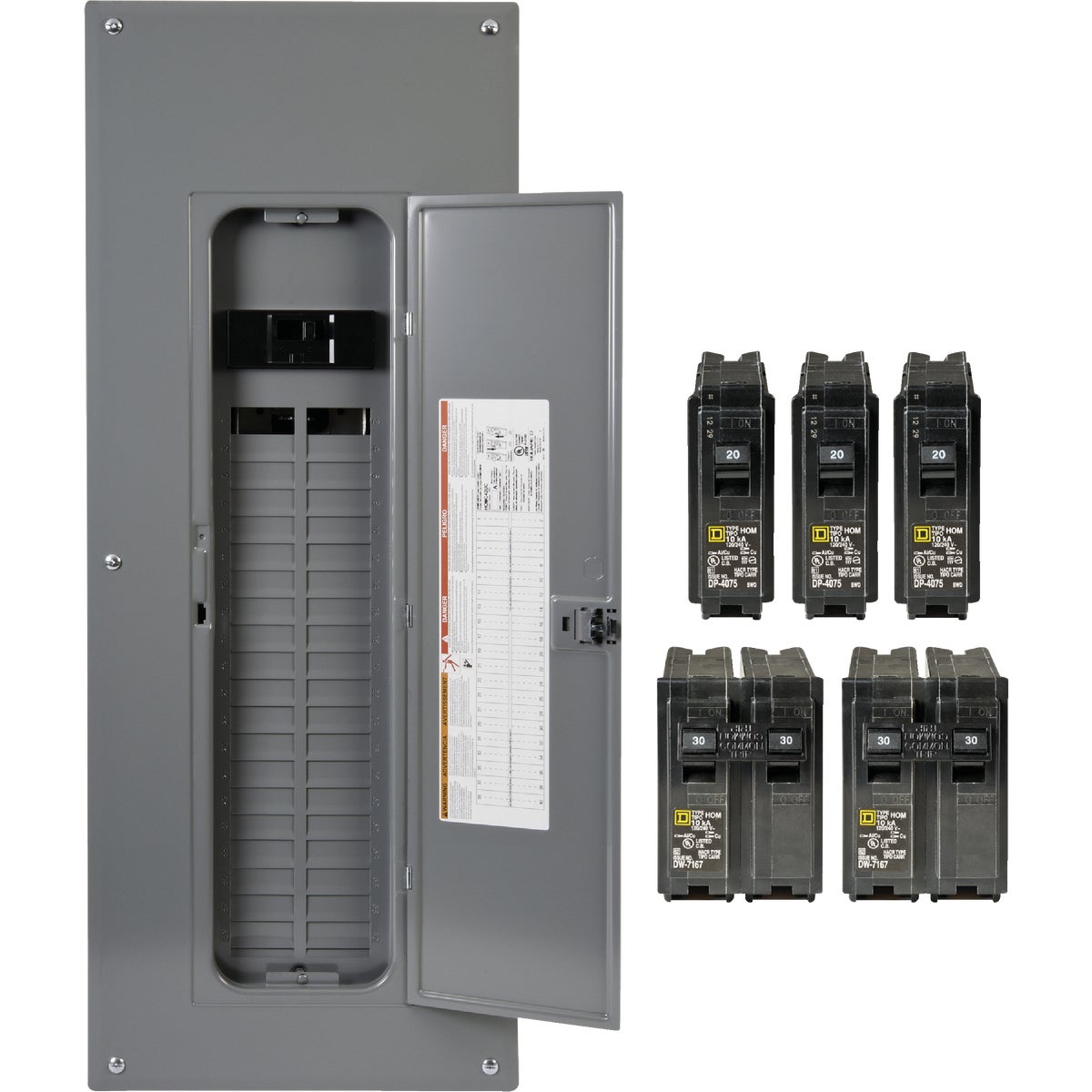

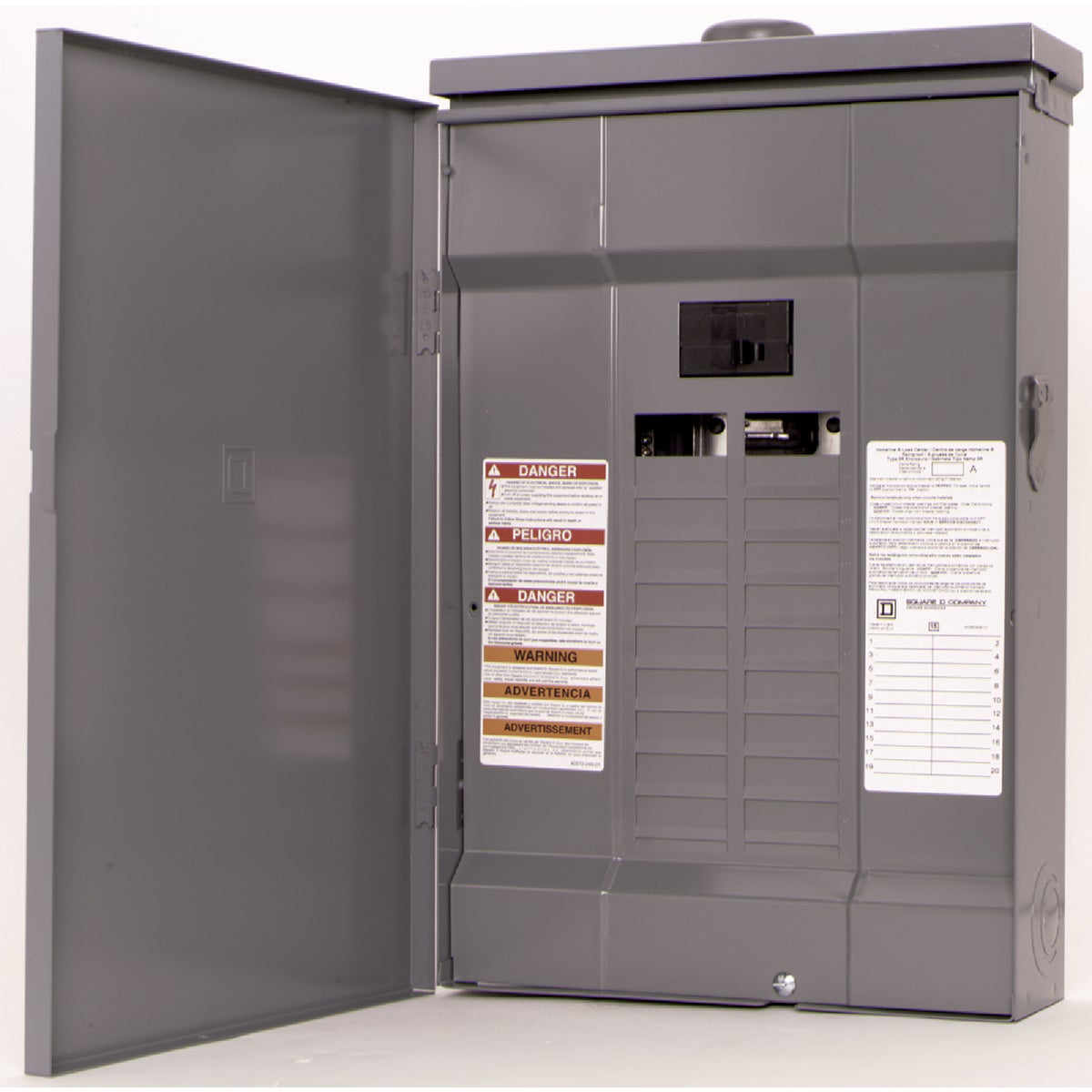

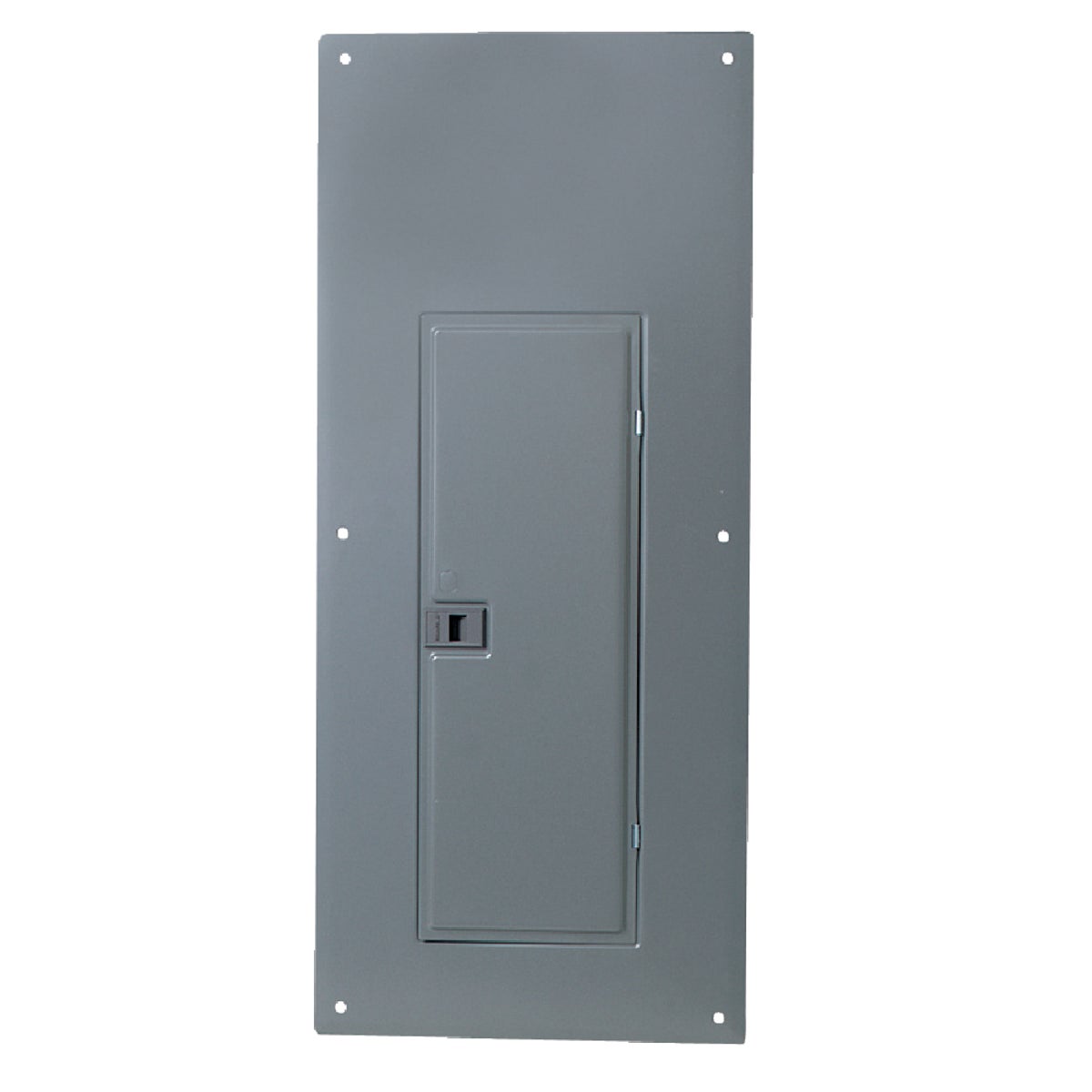

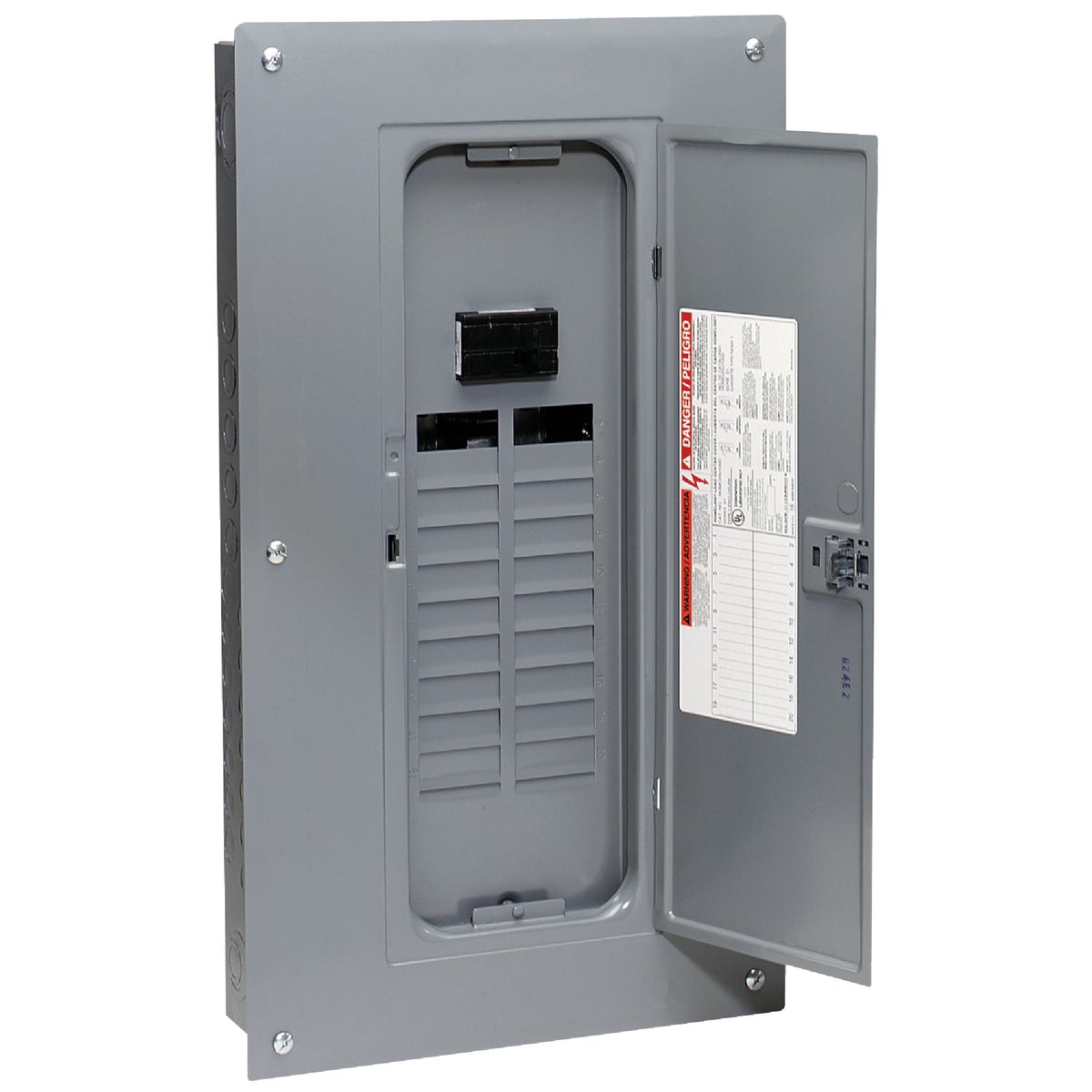

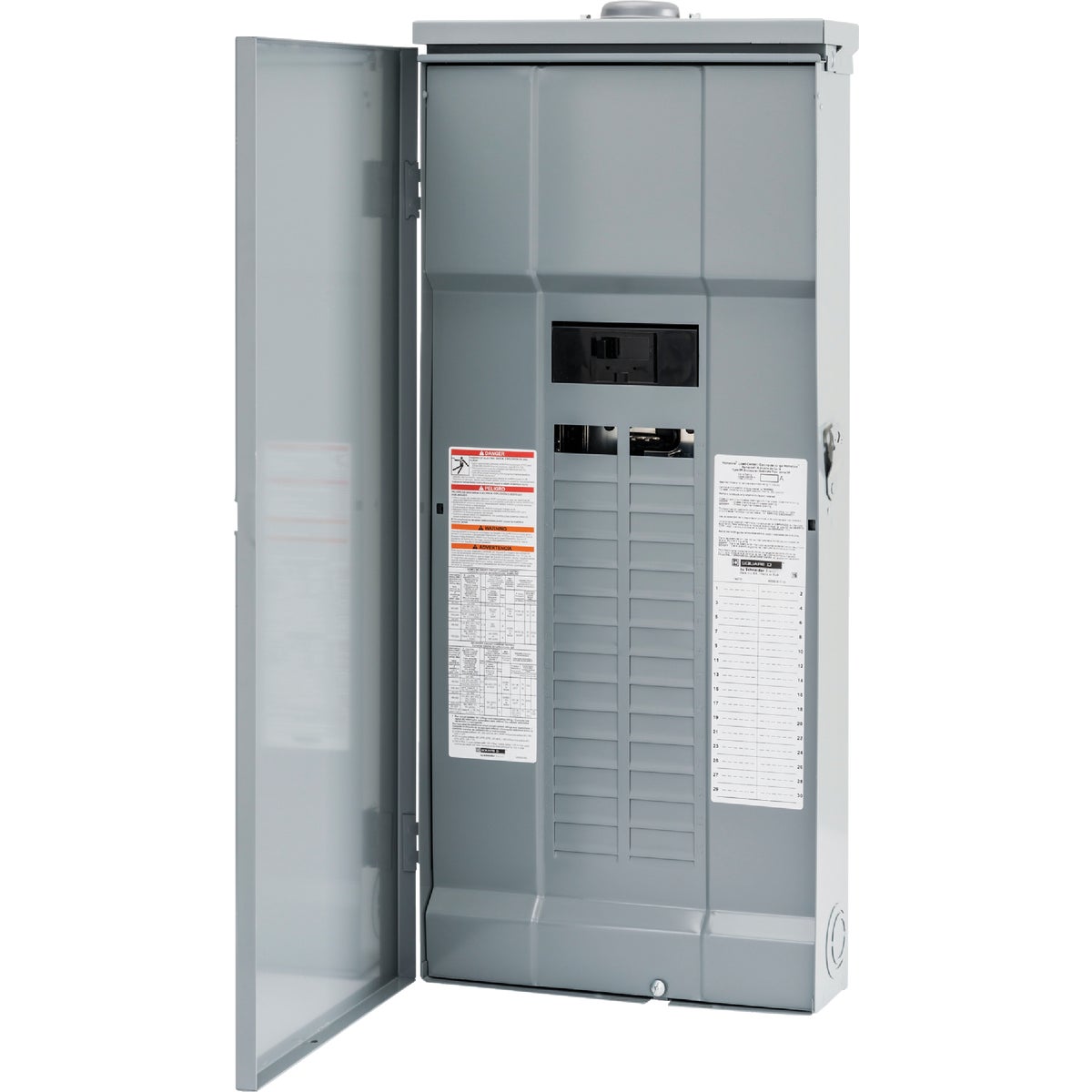

Homeline, main breaker installed. Single-phase, 3-wire, 10,000 A.I.C. Cover included, ground bar kits must be ordered separately. Accepts only Homeline circuit breakers. 120V/240V, UL listed.
* Indicates Available Only At Montgomery, Waco
| No. | Amp Capacity | Mount | Spaces | Maximum Poles | Type | Circuit BreakerType | Bar Kit |
|---|
| * HOM816M100C | 100A | Combination | 8 | 16 | Indoor | HOM/HOMT | PK12GTA |
|---|

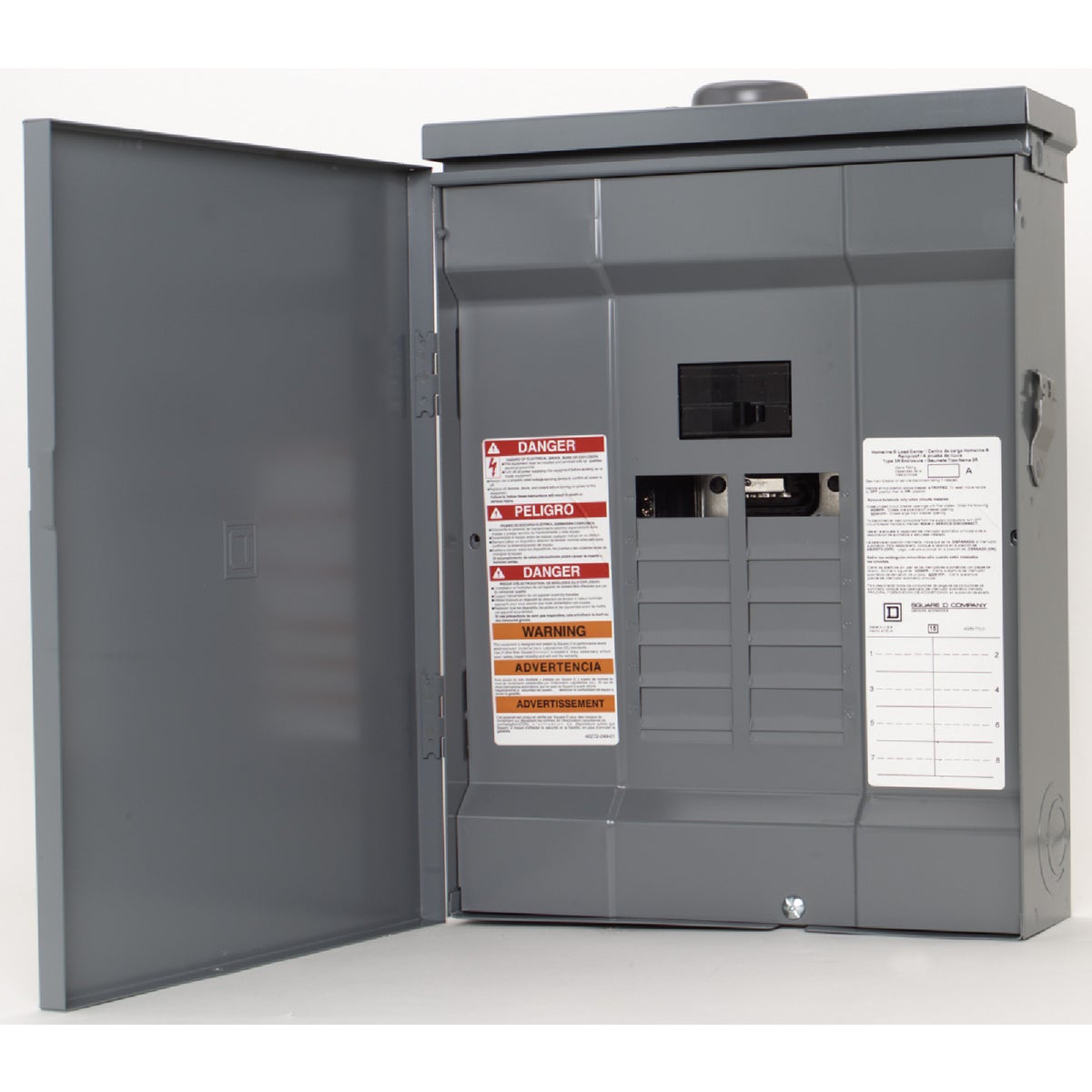

| * HOM816M100RB | 100A | RB | 8 | 16 | Raintight | HOM/HOMT | PK12GTA |
|---|
| HOM12M100C | 100A | Combination | 12 | 12 | Indoor | HOM | PK12GTA |
|---|
| HOM1224M100TC | 100A | Combination | 12 | 24 | Indoor | HOM/HOMT | INSTALLED |
|---|
| HOM20M100C | 100A | Combination | 20 | 20 | Indoor | HOM | PK15GTA |
|---|
| HOM20M100RB | 100A | RB | 20 | 20 | Raintight | HOM | PK15GTA |
|---|
| HOM2040M200C | 200A | Combination | 20 | 40 | Indoor | HOM/HOMT | PK23GTA |
|---|
| HOM30M200C | 200A | Combination | 30 | 30 | Indoor | HOM | PK18GTA |
|---|
| HOM30M200RB | 200A | RB | 30 | 30 | Raintight | HOM | PK18GTA |
|---|
| HOM40M200C | 200A | Combination | 40 | 40 | Indoor | HOM | PK23GTA |
|---|
| HOM40M200RB | 200A | RB | 40 | 40 | Raintight | HOM | PK23GTA |
|---|
|
|
|
|
|
|
