Load Center

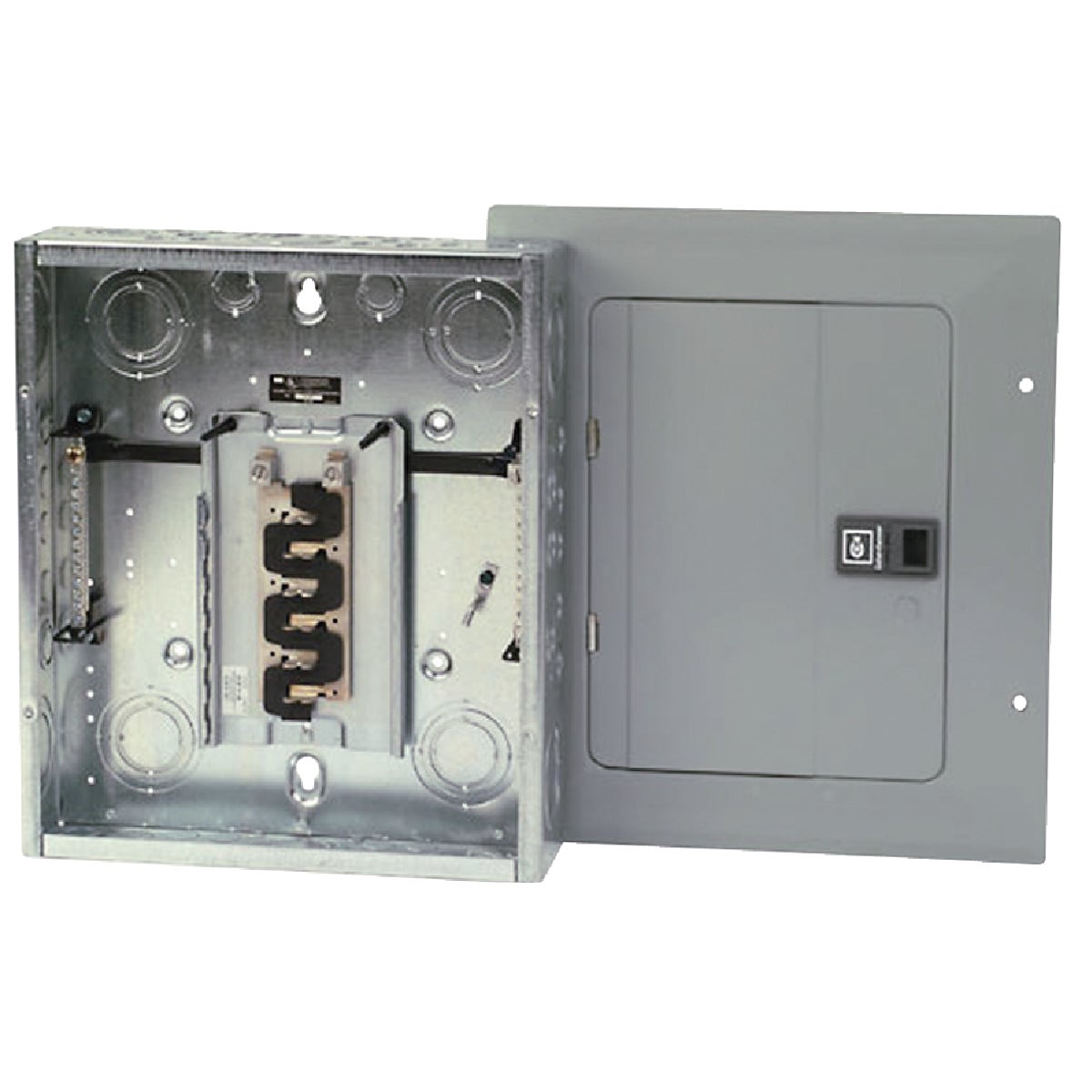

Main Lug load center designed for service entrance equipment. Main Lugs Only. Single-phase, 3-wire, flush or surface mount. Solid neutral bar and cover included. Optional ground bar kits must be ordered separately. Load centers that accept BD and BQ type circuit breakers have a notched bus bar. UL listed.
| No. | Amp Capacity | Mount | Spaces | Maximum Poles | Type | Circuit Breaker Type | Ground BarKits |
|---|

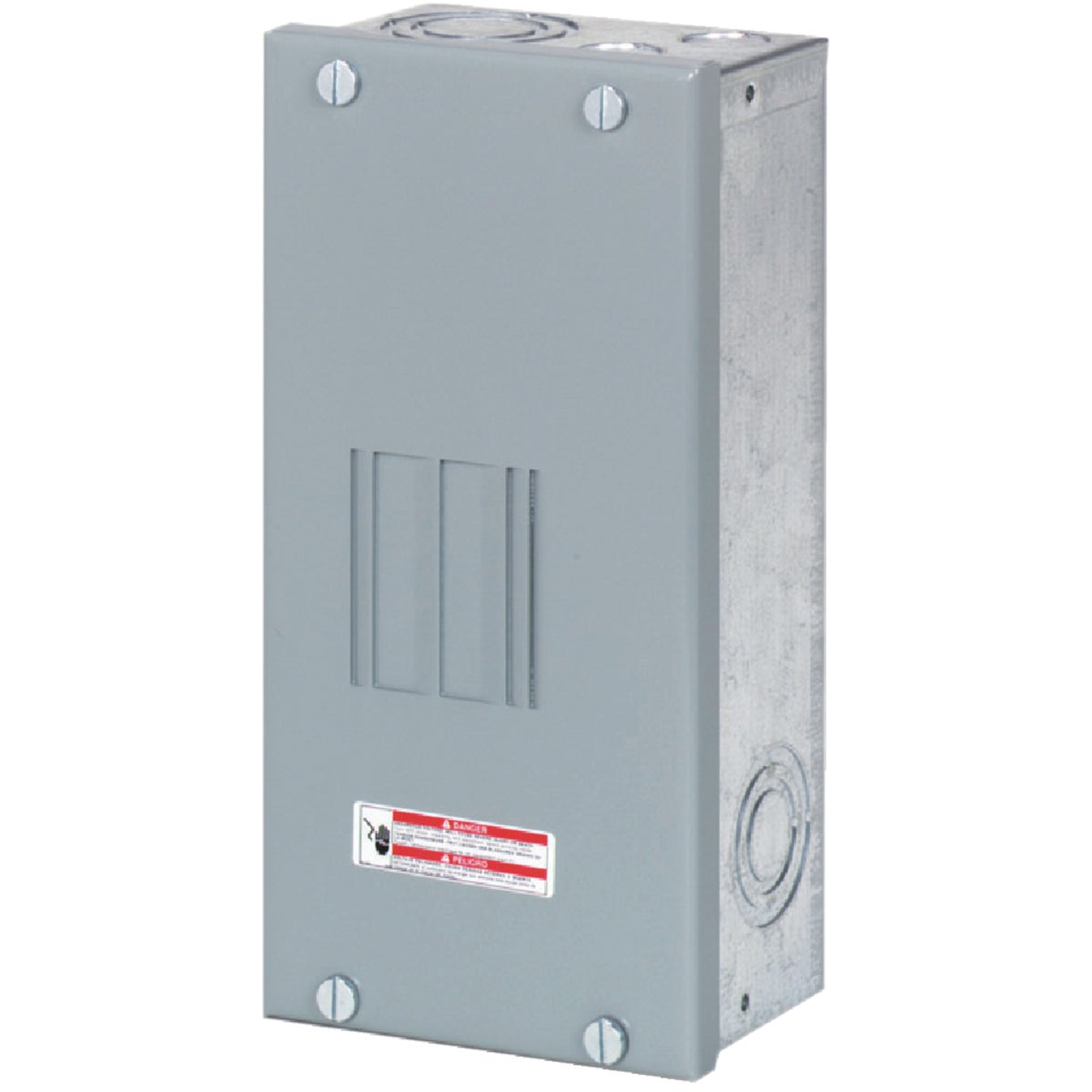

| BR24L70FP | 70 | Flush | 2 | 4 | Indoor | BR, BD, BQ | GBK 5P |
|---|
| BR24L70SP | 70 | Surface | 2 | 4 | Indoor | BR, BD, BQ | GBK 5P |
|---|

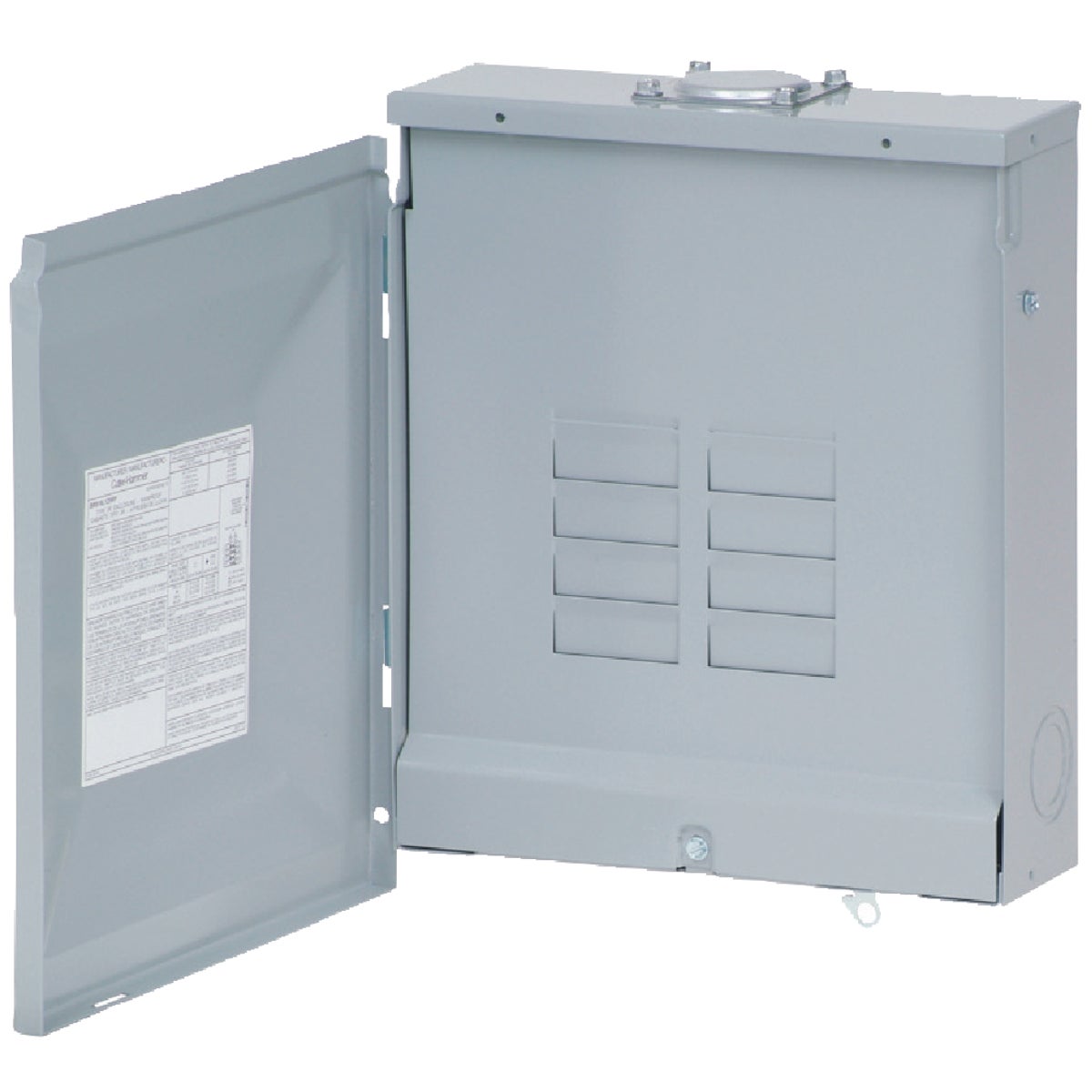

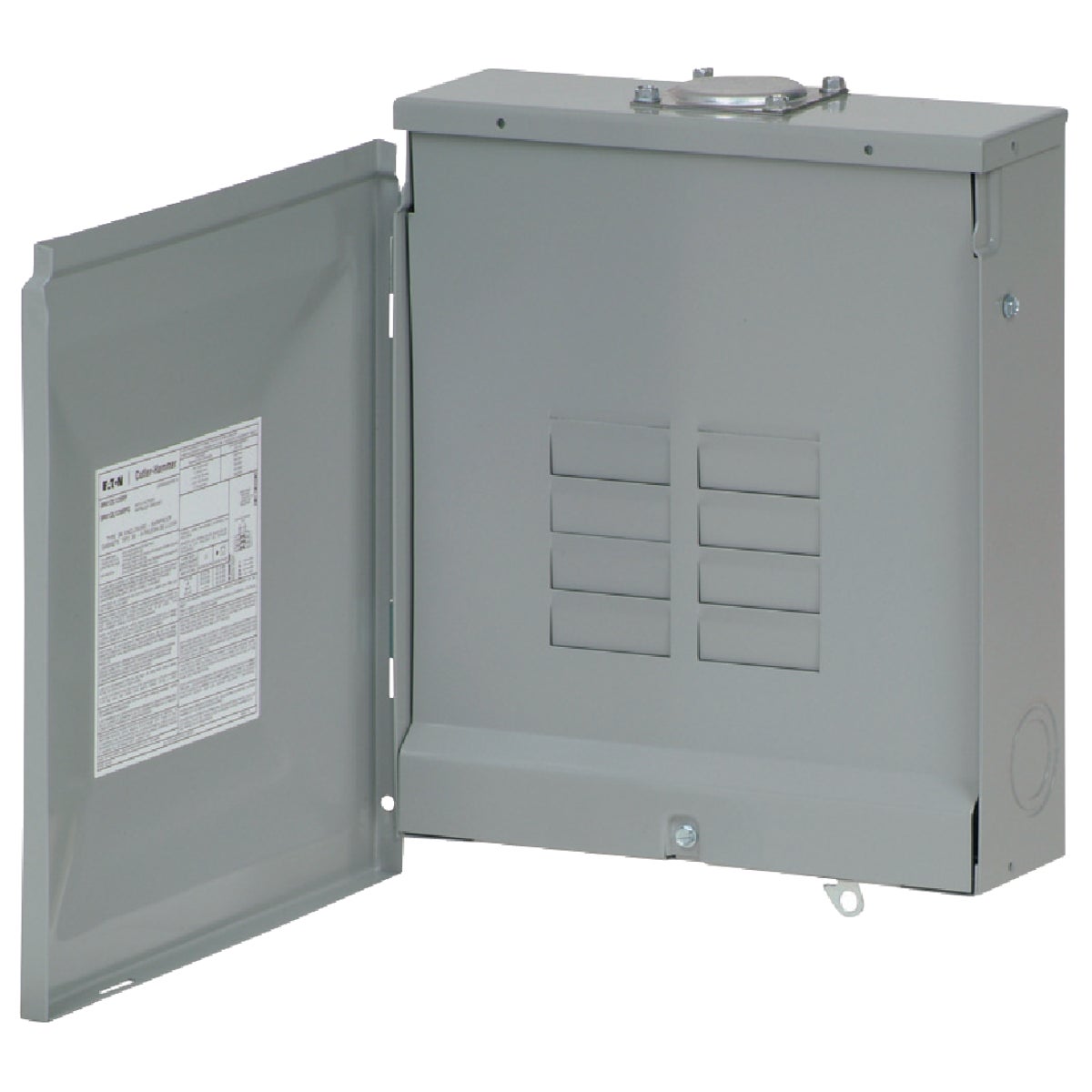

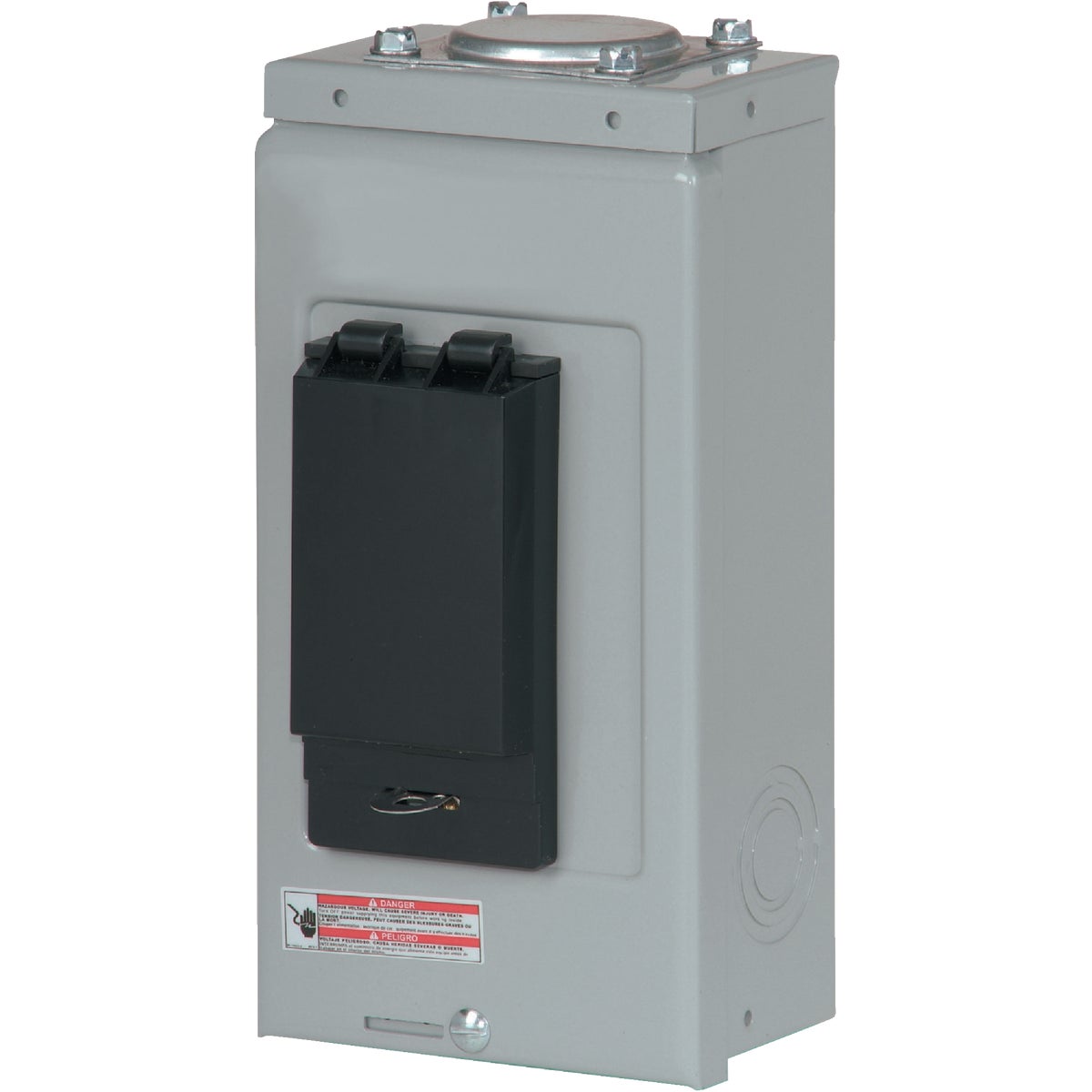

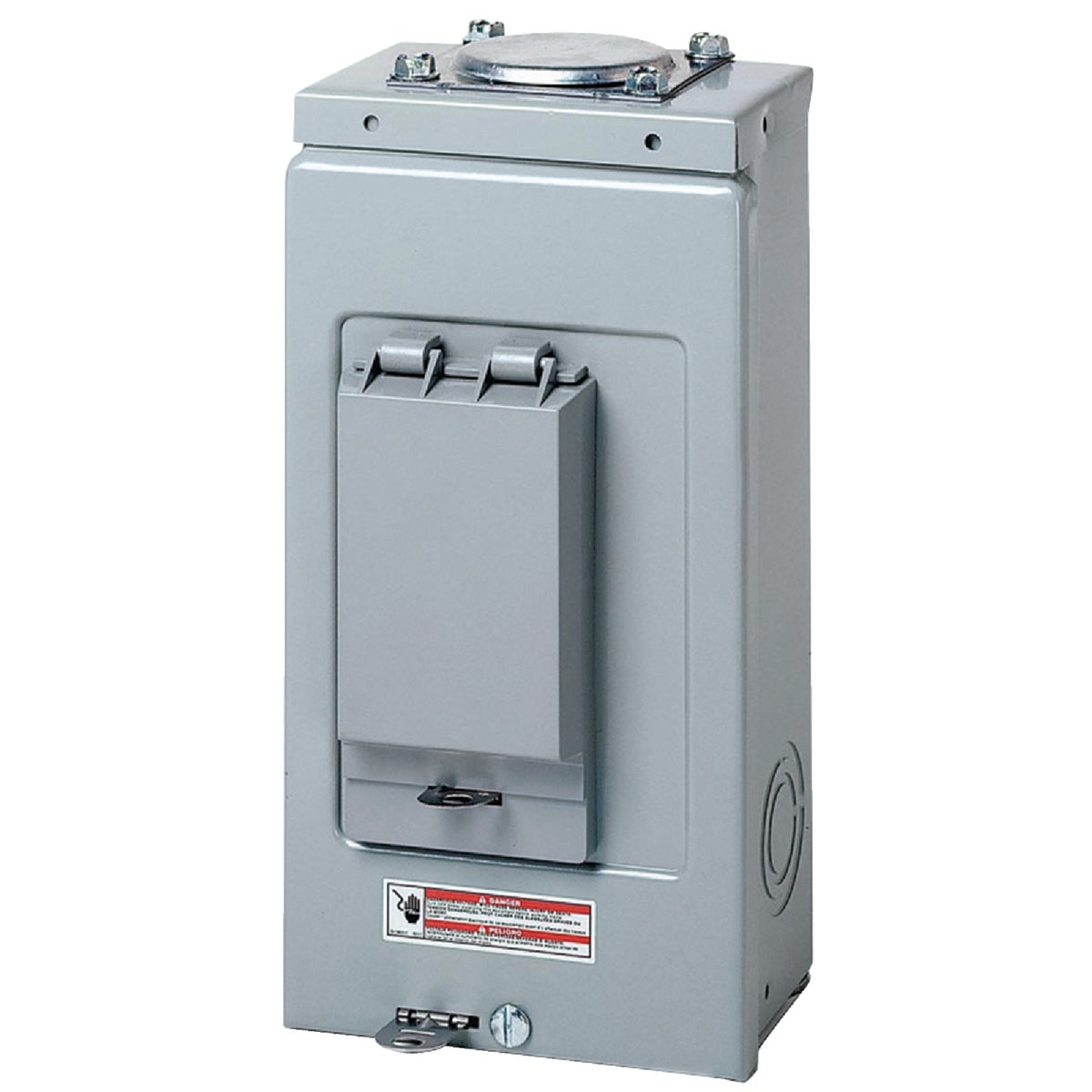

| BR24L70RP | 70 | Surface | 2 | 4 | Rainproof | BR, BD, BQ | GBK 5P |
|---|

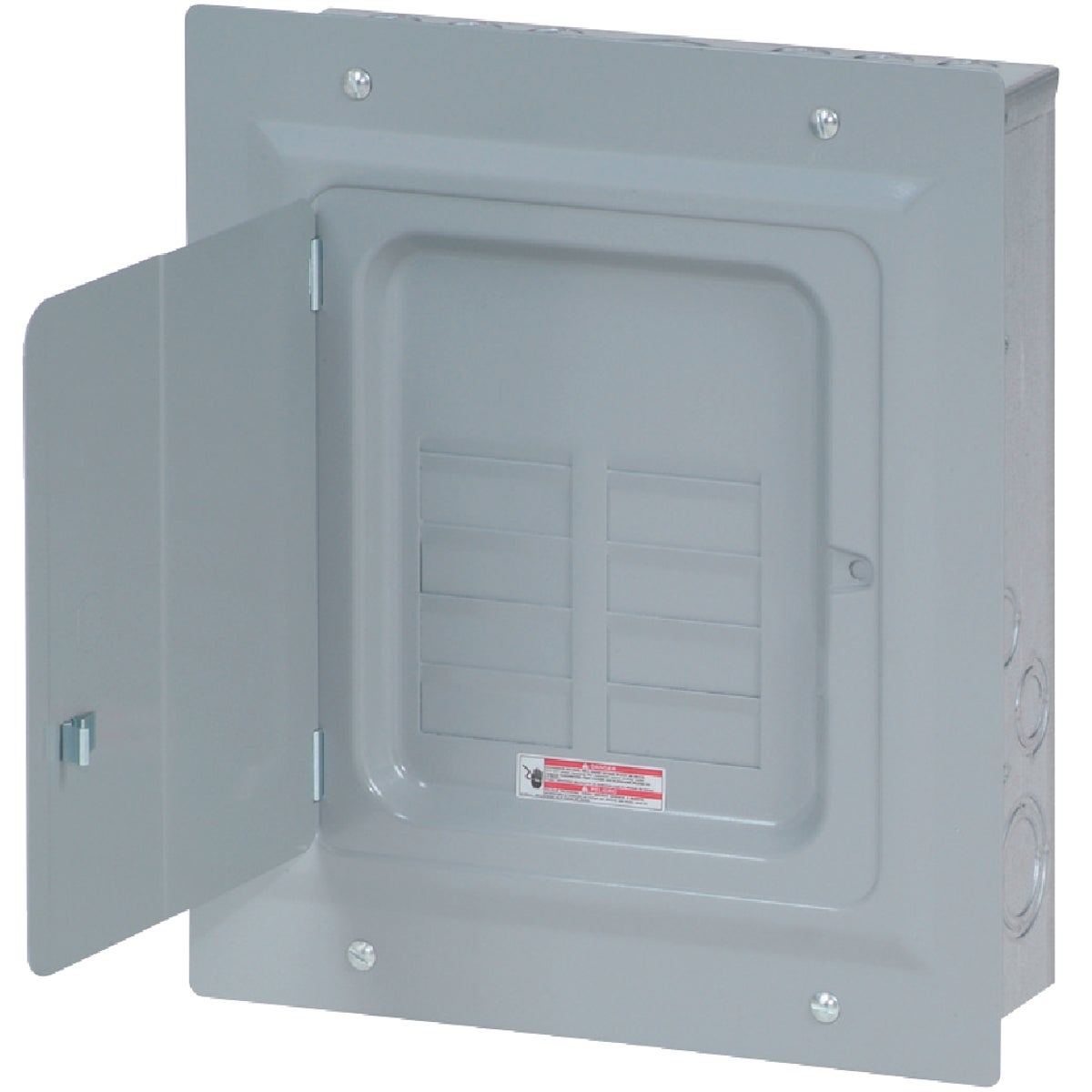

| BR612L125FDP | 125 | Flush | 6 | 12 | Indoor | BR, BD, BQ | GBK 5P |
|---|

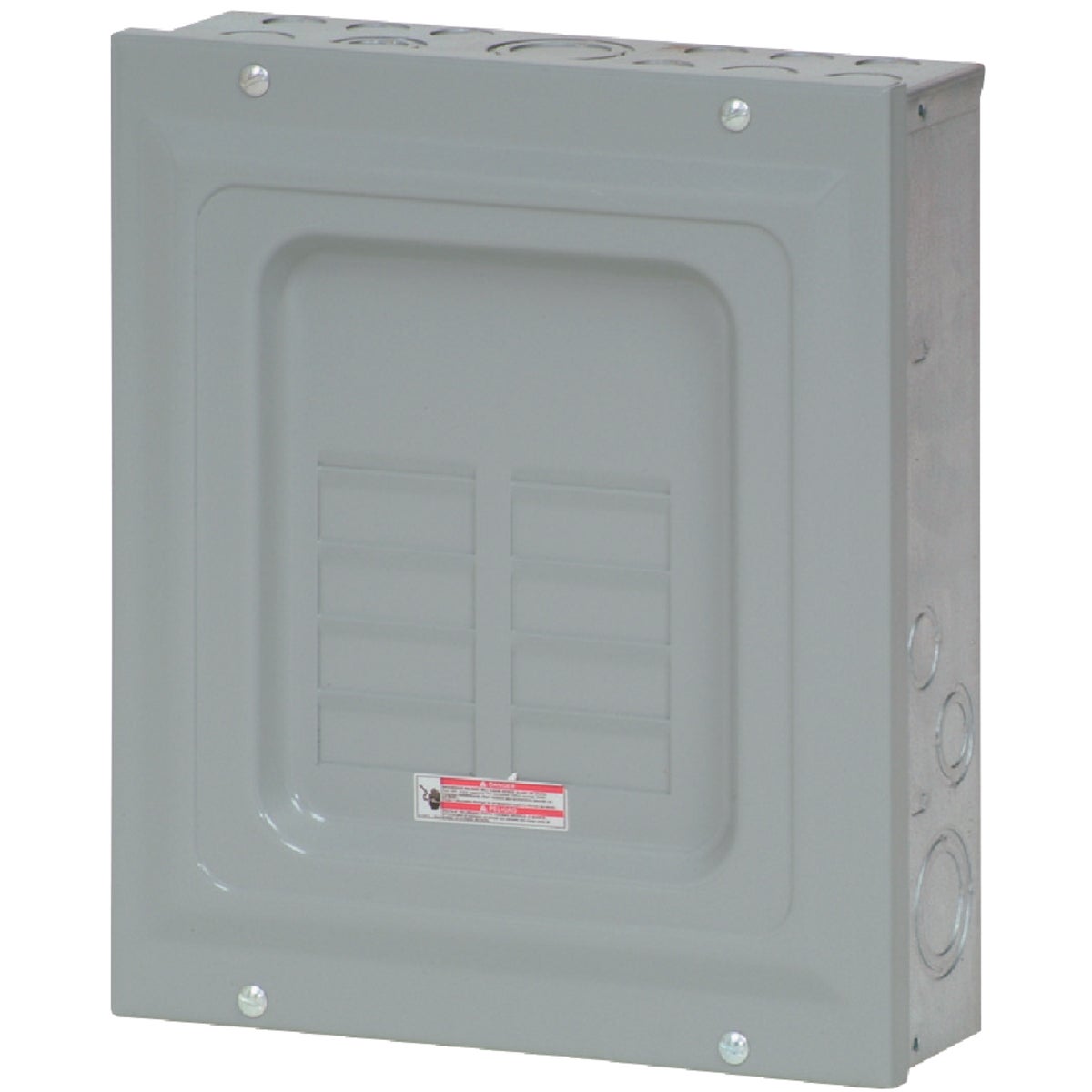

| BR612L125SDP | 125 | Surface | 6 | 12 | Indoor | BR, BD, BQ | GBK 5P |
|---|

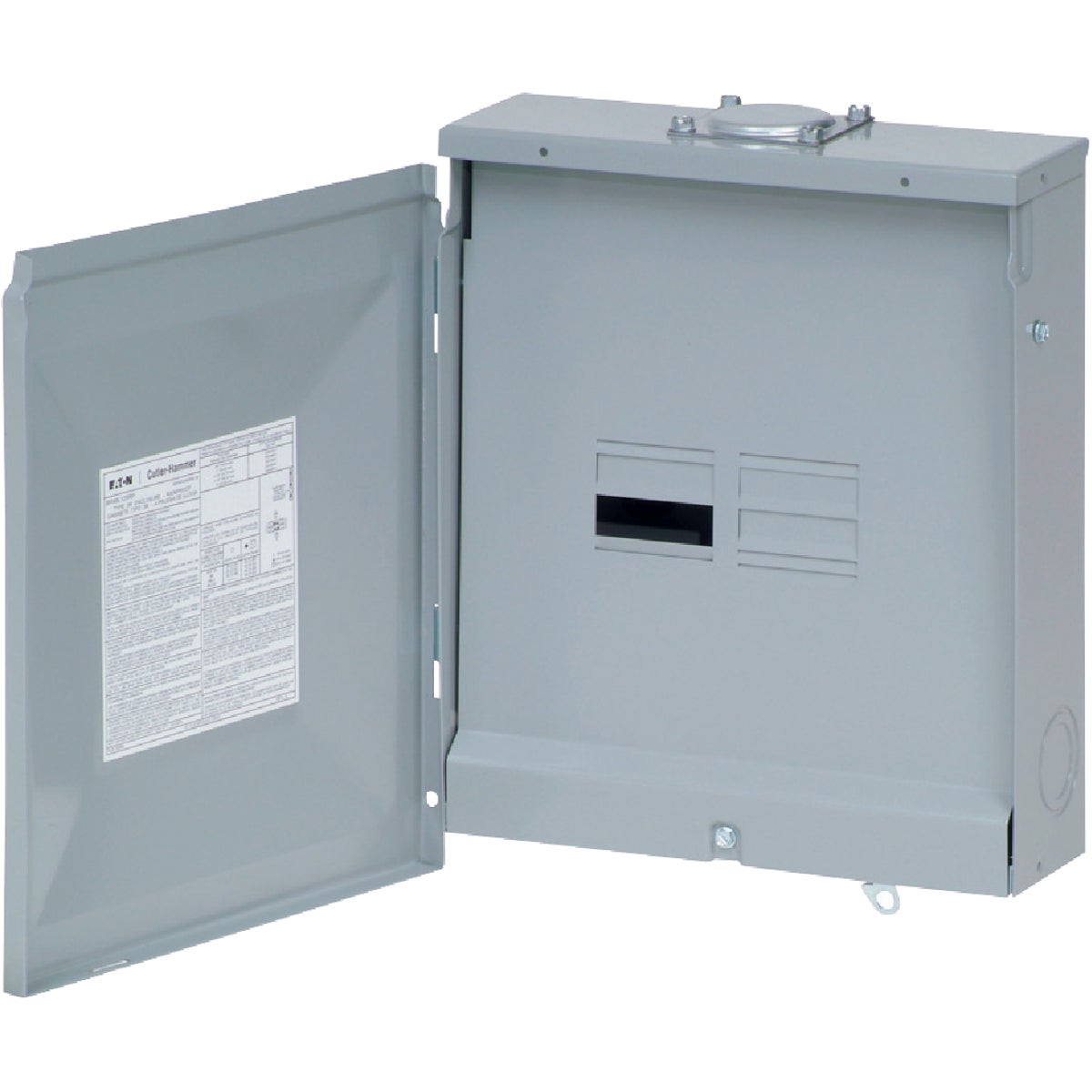

| BR612L125RP | 125 | Surface | 6 | 12 | Rainproof | BR, BD, BQ | GBK 5P |
|---|

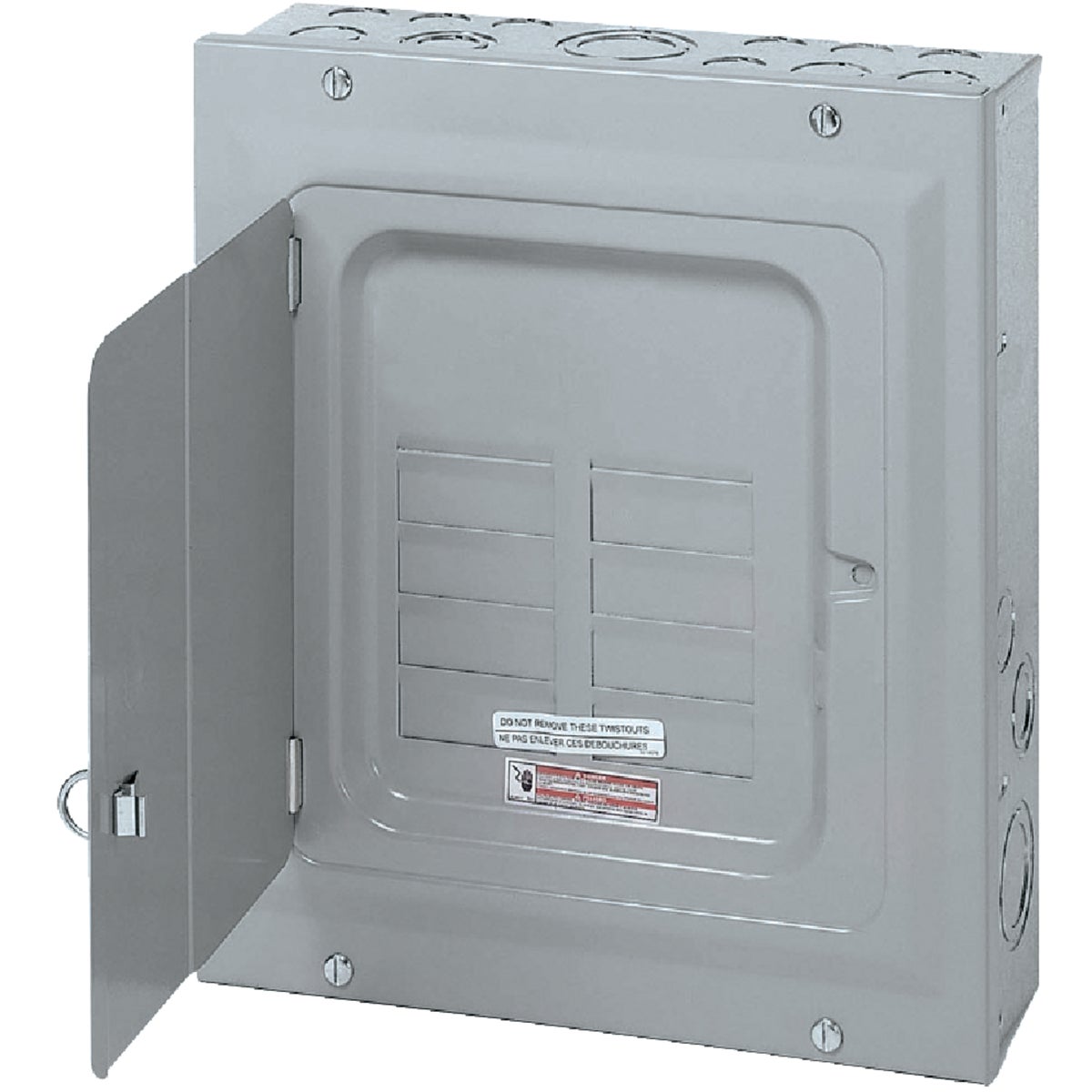

| BR816L125FDP | 125 | Flush | 8 | 16 | Indoor | BR, BD, BQ | GBK 5P |
|---|
| BR816L125RP | 125 | Surface | 8 | 16 | Rainproof | BR, BD, BQ | GBK 5P |
|---|

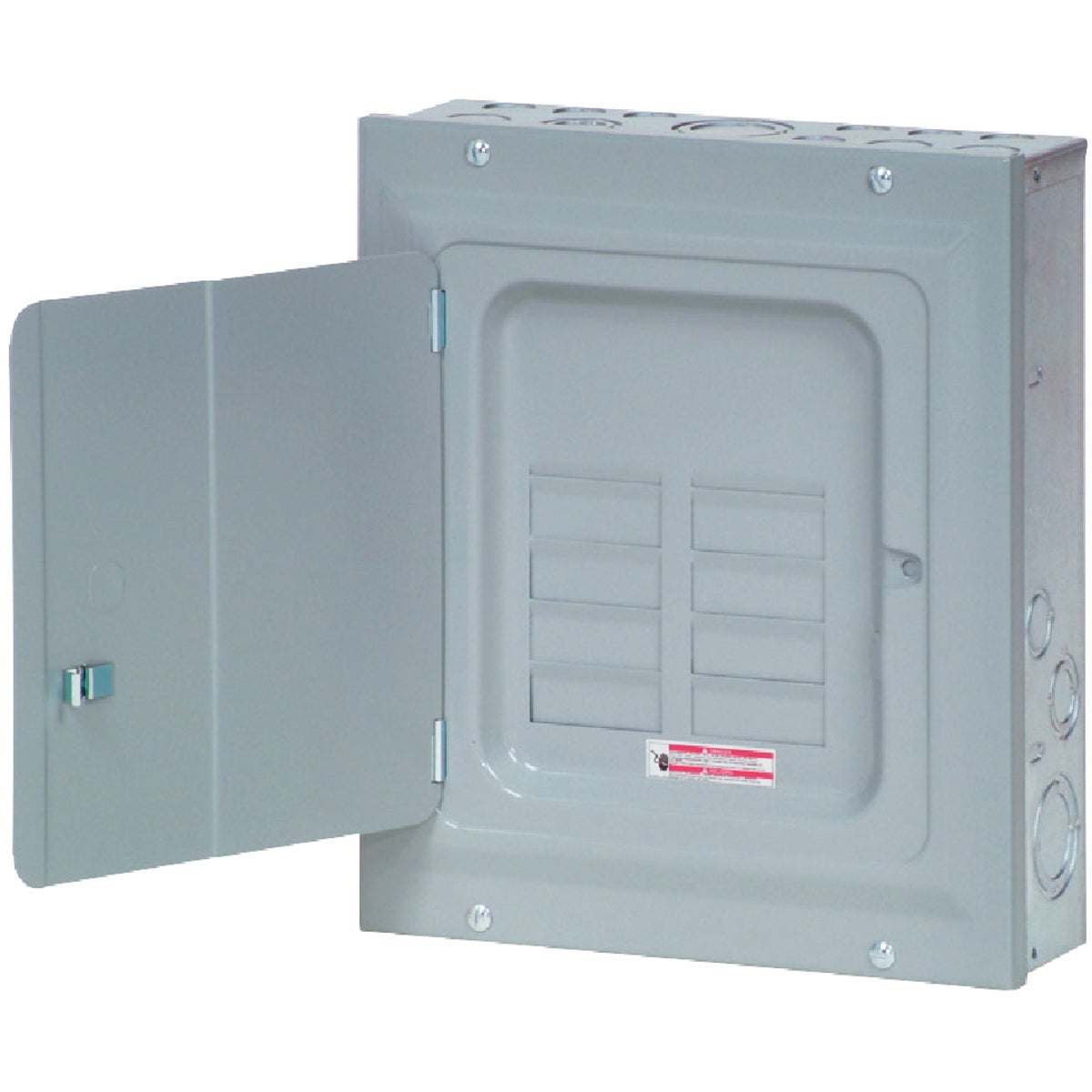

| BR816L125SDP | 125 | Surface | 8 | 16 | Indoor | BR, BD, BQ | GBK 5P |
|---|

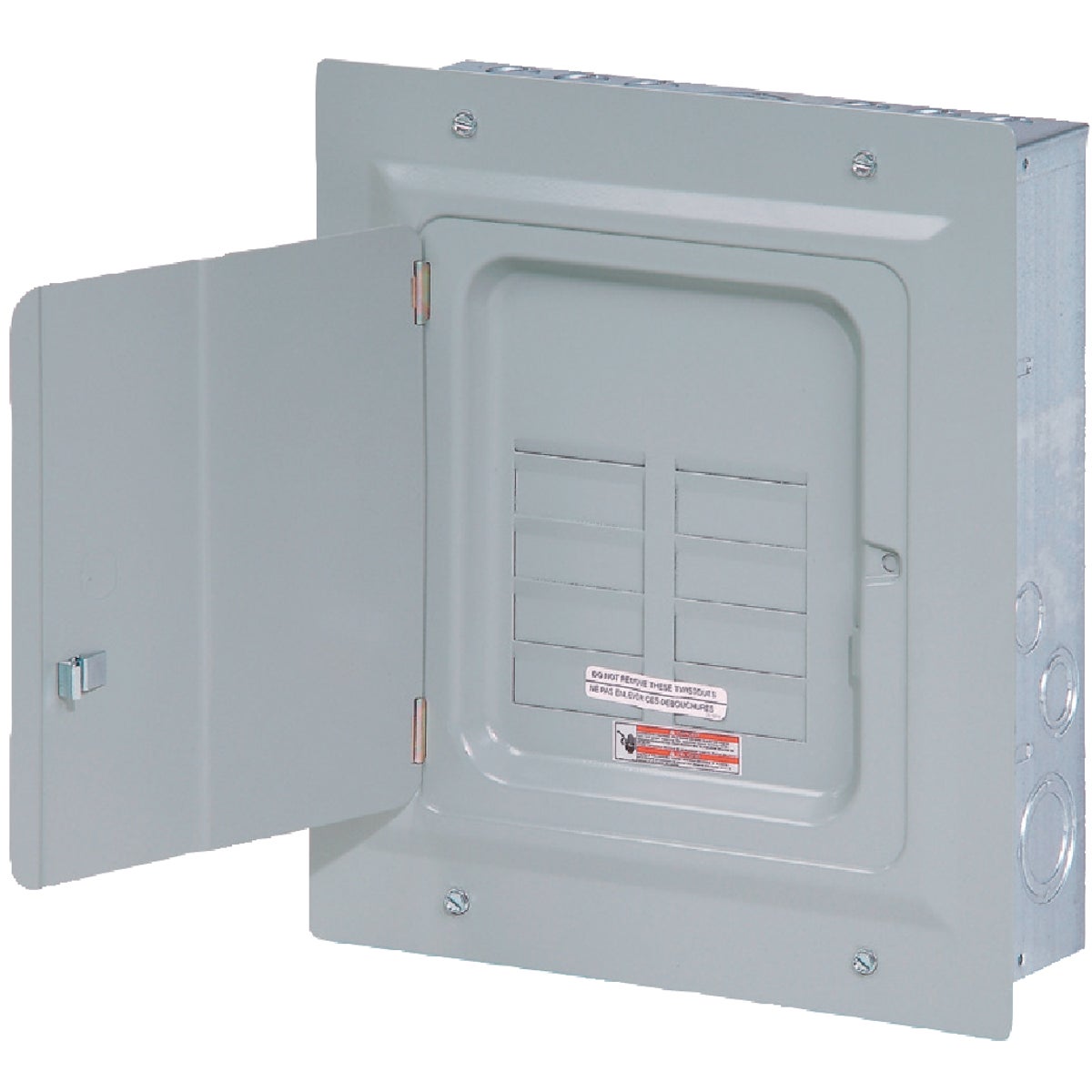

| BR48L125FP | 125 | Flush | 4 | 8 | Indoor | BR, BD, BQ | GBK 5P |
|---|

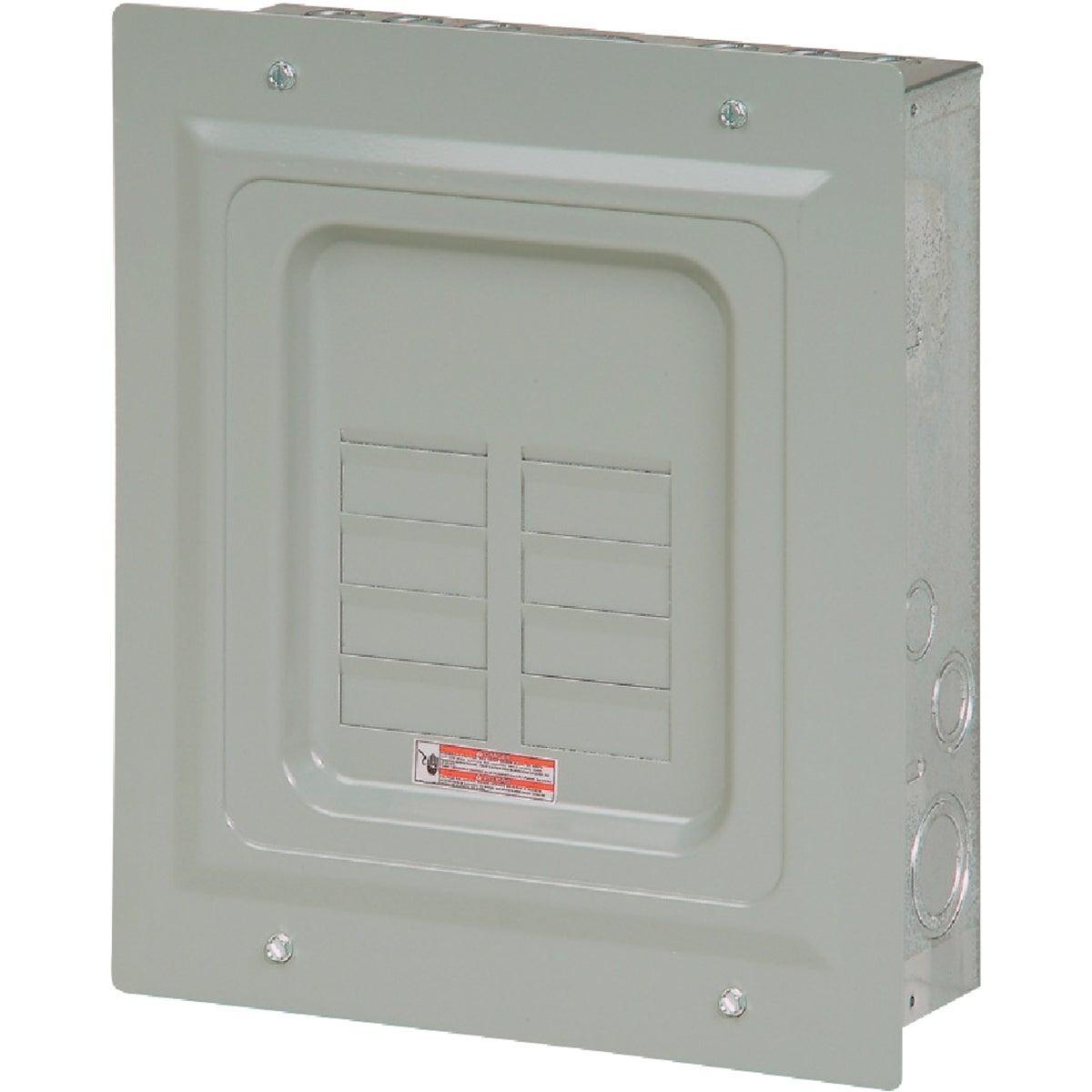

| BR48L125SP | 125 | Surface | 4 | 8 | Indoor | BR, BD, BQ | GBK 5P |
|---|
| BR48L125RP | 125 | Surface | 4 | 8 | Rainproof | BR, BD, BQ | GBK 5P |
|---|
| BR1224L125 | 125 | Flush/Surface | 12 | 24 | Indoor | BR, BD, BQ | GBK 10P |
|---|

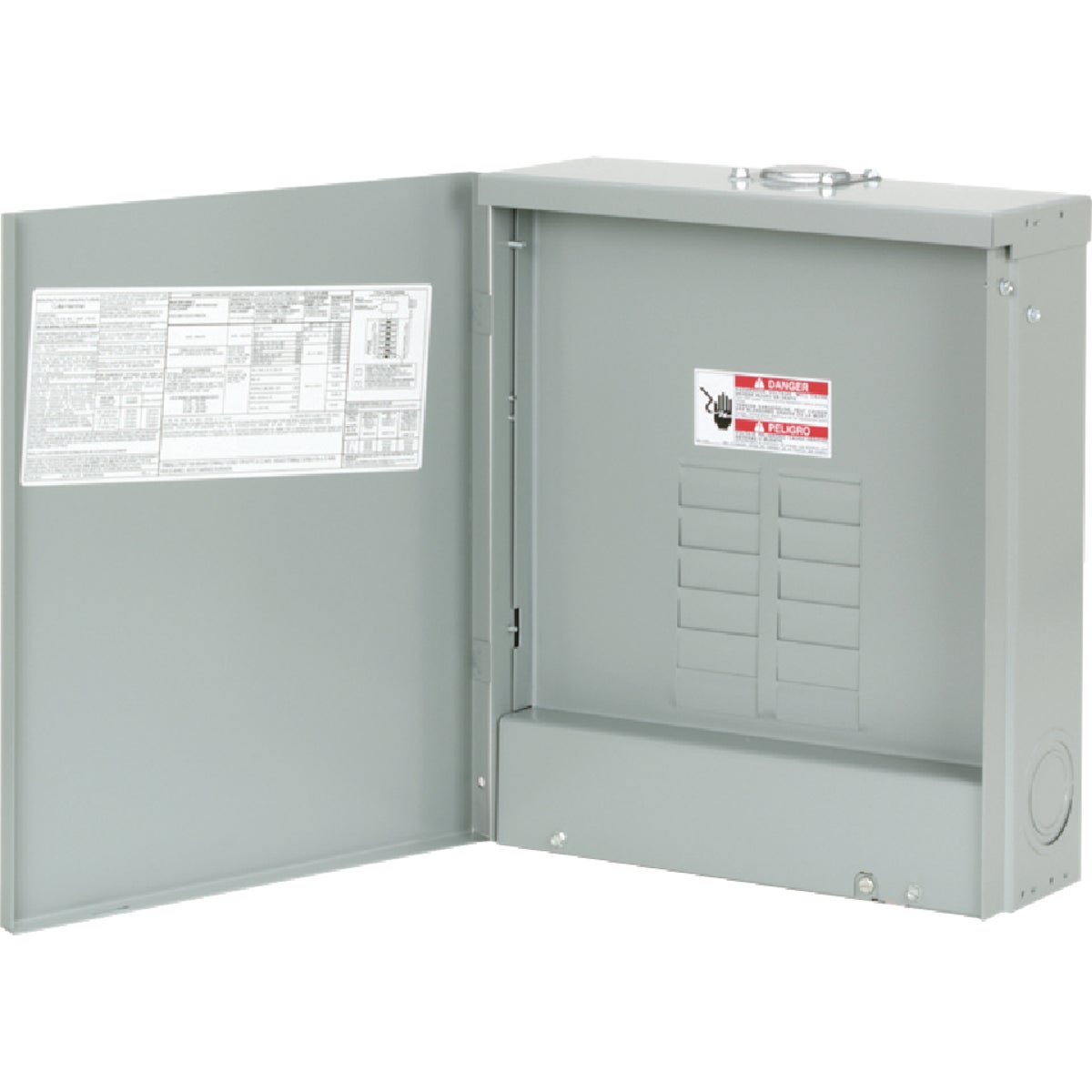

| BR1224L125R Available Only At Cape, Dixon, Waco, Lexington, Woodburn, Mesquite | 125 | Surface | 12 | 24 | Rainproof | BR, BD, BQ | GBK 10P |
|---|
| BR1224L200 Available Only At Waco | 200 | Flush/Surface | 12 | 24 | Indoor | BR | GBKDP |
|---|
| BR1224L200R Available Only At Waco | 200 | Surface | 12 | 24 | Rainproof | BR | GBK 1420 |
|---|
| BR2040L200 | 200 | Flush/Surface | 20 | 40 | Indoor | BR, BD, BJ, BQ | GBK 14P |
|---|
| BR2040L200R | 200 | Surface | 20 | 40 | Rainproof | BR, BD, BJ, BQ | GBK 14P |
|---|
|
