Main Breaker Load Center
Main breaker load center designed for service entrance equipment. Main Breaker Installed. Single-phase, 3-wire, flush or surface mount. Solid neutral bar and cover included. Optional ground bar kits must be ordered separately. Load centers that accept BD and BQ type breakers have a notched bus bar. UL listed.
| No. | Amp Capacity | Mount | Spaces | Maximum Poles | Type | Circuit BreakerType | Ground Bar Kit |
|---|
| *BR816B100 | 100 | Flush/Surface | 8 | 16 | Indoor | BR, BD, BQ | GB10C |
|---|

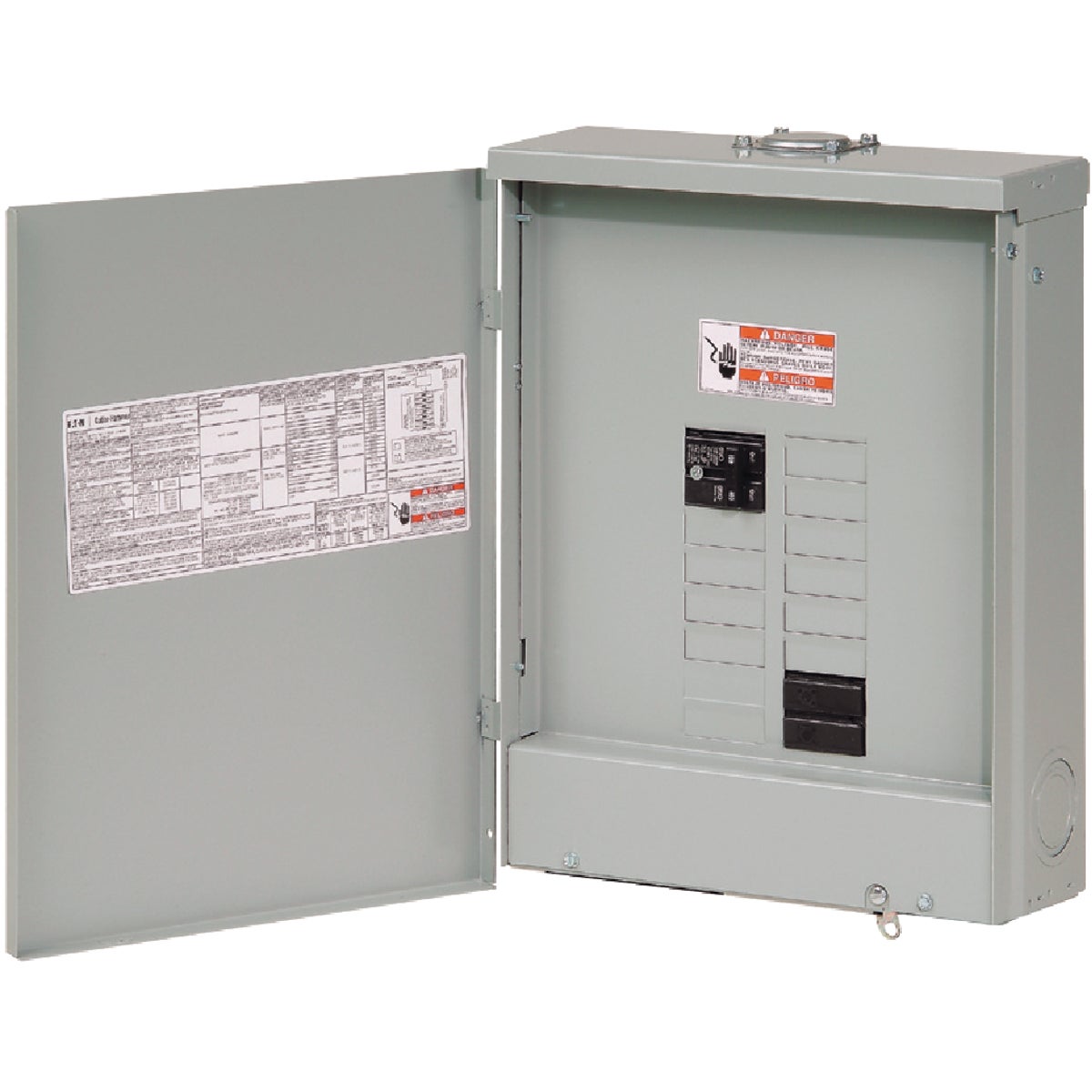

| **BR1020B100RF | 100 | Flush/Surface | 10 | 20 | Raintight | BR, BD, BQ | GB10C |
|---|
| BR1220B100 | 100 | Flush/Surface | 12 | 20 | Indoor | BR, BD, BQ | GB10C |
|---|
| ***BR1620B100 | 100 | Flush/Surface | 16 | 20 | Indoor | BR, BD, BQ | GB10C |
|---|
| BR2020B100 | 100 | Flush/Surface | 20 | 20 | Indoor | BR | GB10C |
|---|
| BR2040B200 | 200 | Flush/Surface | 20 | 40 | Indoor | BR, BD, BQ | (2) GB10C |
|---|
| ****BR2040B200R | 200 | Flush/Surface | 20 | 40 | Raintight | BR, BD, BQ | (2) GB10C |
|---|
| BR3040B200 | 200 | Flush/Surface | 30 | 40 | Indoor | BR, BD, BQ | 3GB39 |
|---|
| BR4040B200 | 200 | Flush/Surface | 40 | 40 | Indoor | BR | 3GB39 |
|---|
|
