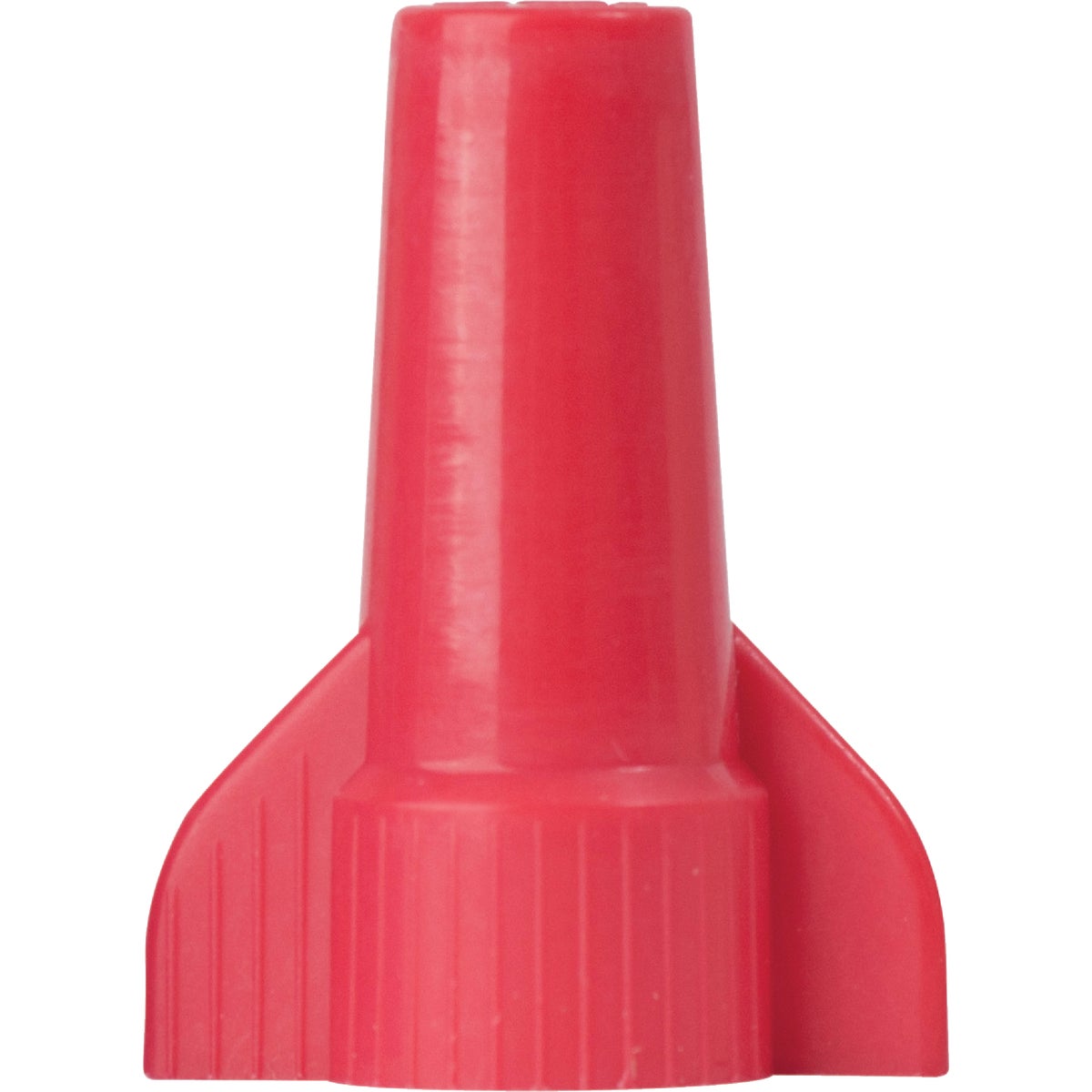

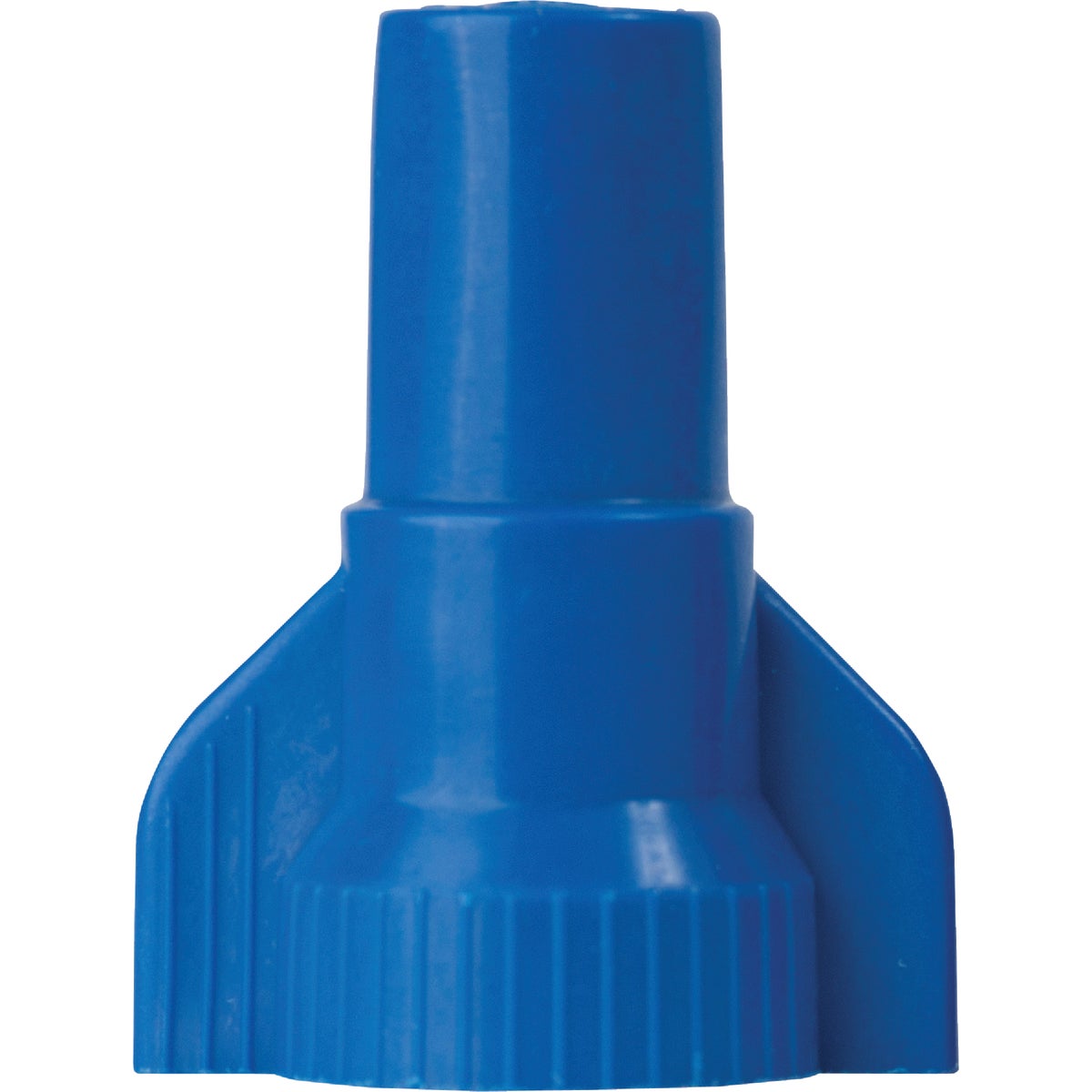

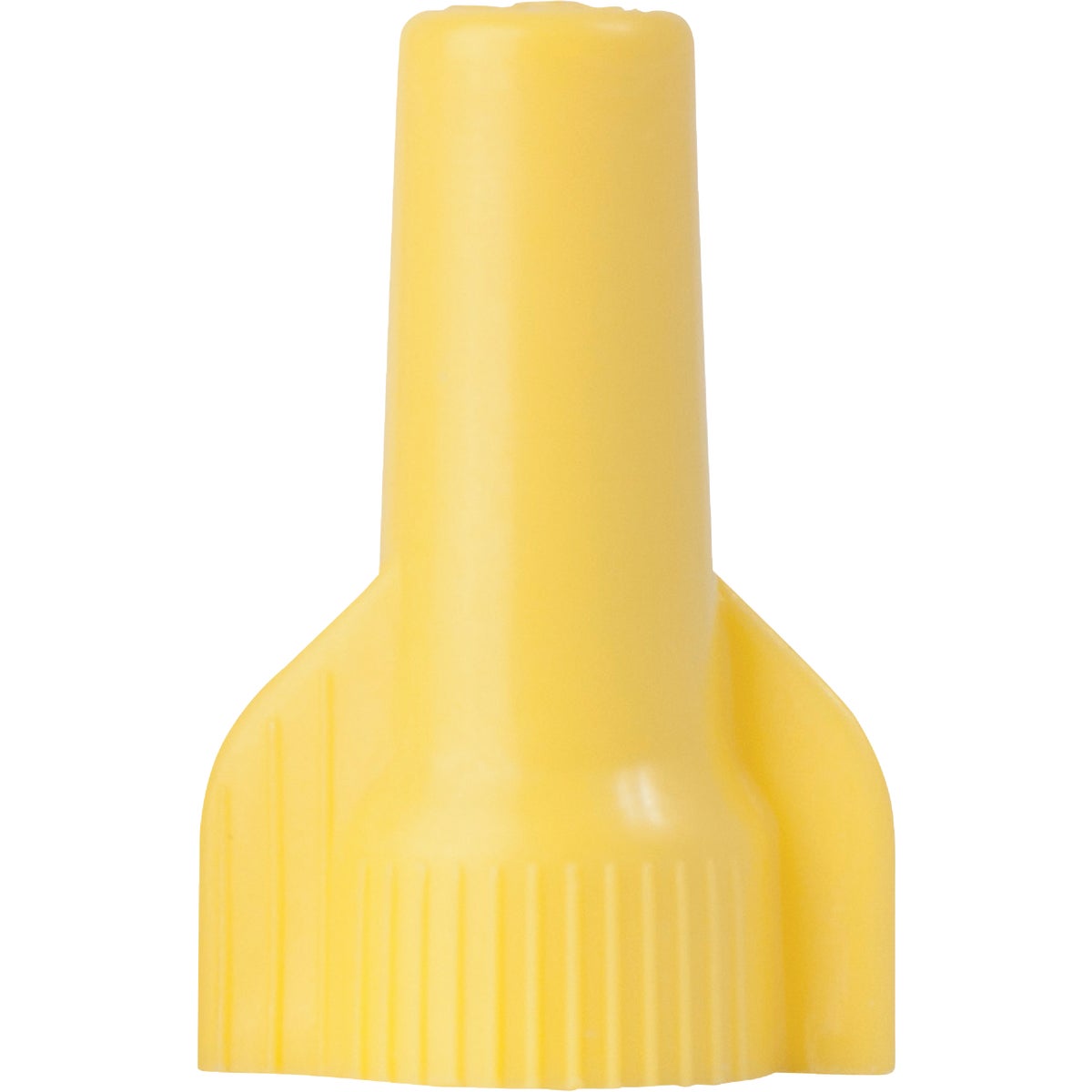

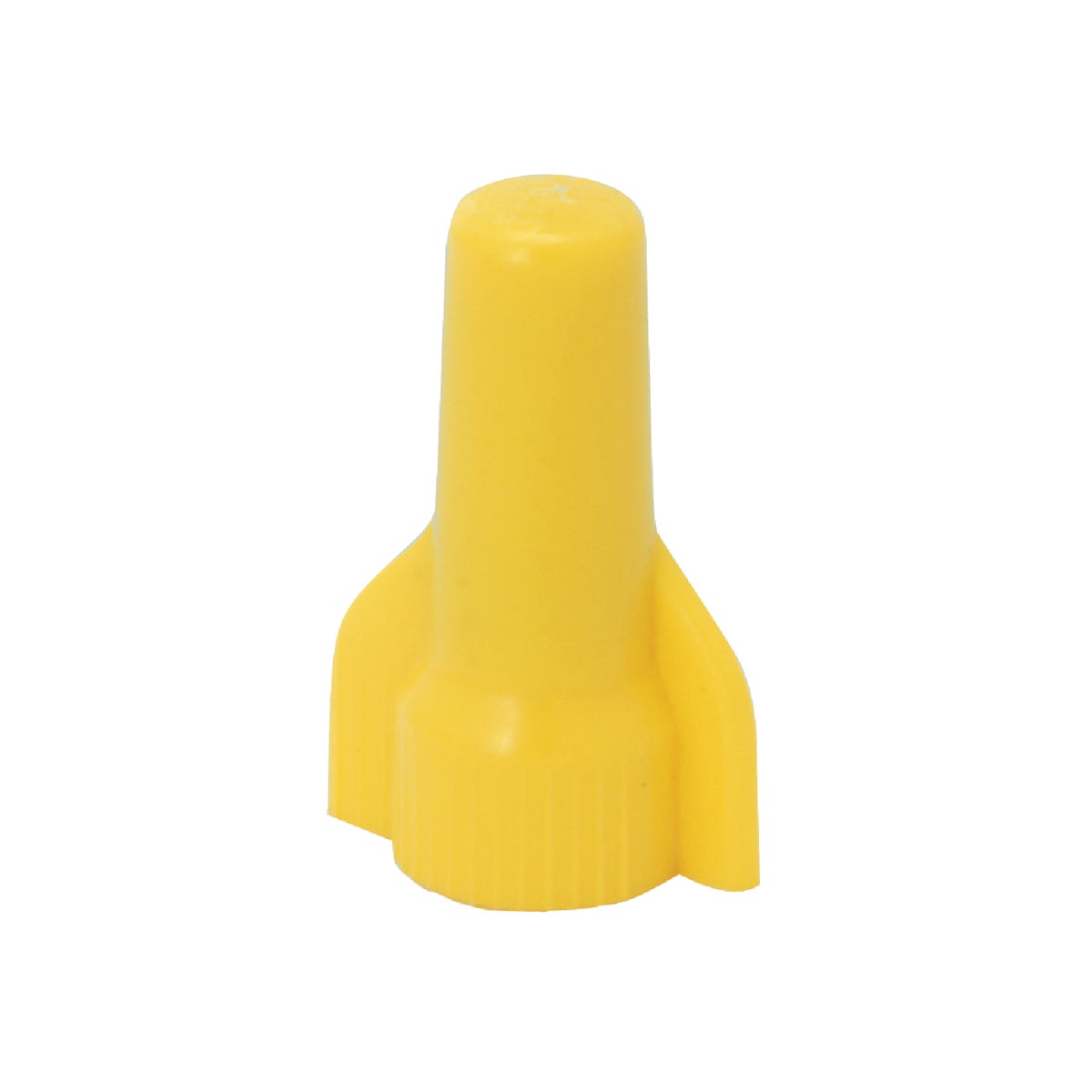

GB WingGard wire connectors make quick, secure connections with easy-on wing-type design providing positive continuity between conductors. The expandable square wire spring creates a strong vibration-resistant connection. Their tough, thermoplastic shell shields against environmental extremes. The color-coded, high dielectric shell features a deep skirt design to prevent exposure of bare wire while providing superior flash-over protection. GB connectors comply with Federal specification W-5-610d and are UL486C listed and CSA certified. The connector is flame-retardant, nonporous and noncorrossive, and resists surface cracking and chemical action. Temperature rated to 221 F. UL listed. No. 25-084: Small, yellow, splices copper-to-copper, joins No. 22AWG thru No. 10AWG, minimum combination: 2 No. 18, maximum combination: 3 No. 12, 25 per ziplock bagNo. 25-086: Medium, red, splices copper-to-copper, joins No. 18AWG thru No. 10AWG, minimum combination: 3 No. 14 , maximum combination: 5 No. 12, 25 per ziplock bagNo. 25-089: Large, blue, splices copper-to-copper, joins No. 14AWG thru No. 6AWG, minimum combination: 1 No. 10, with 1 No. 12, maximum combination: 1 No. STR, 10 per ziplock bagNo. 10-084: Yellow, joins No. 18 thru 10AWG, minimum: 2 No. 18, maximum: 4 No. 12, 100 per boxNo. 10-086: Red, joins No. 18 thru No. 10AWG, minimum: 2 No. 14, maximum: 4 No. 12, 100 per boxNo. 10-089: Blue, joins No. 12 thru No. 6AWG, minimum: 1 No. 10, maximum: 1 No. 6 and 2 No. 8, 50 per boxNo. 16-084: Small, yellow, splices copper-to-copper, joins No. 22AWG thru No. 10AWG, minimum combination: 2 No. 18, maximum combination: 3 No. 12, 100 per jarNo. 16-086: Medium, red, splices copper-to-copper, joins No. 18AWG thru No. 10AWG, minimum combination: 3 No. 14, maximum combination: 5 No. 12 125 per jar |
